• 2 KHz to 100 MHz
• Ultra–Low Power Consumption: 3 mA/12 µA (Active/Standby)
• 1.6 mm x 1.2 mm
• 2.0 mm x 1.6 mm
• 2.5 mm x 2.0 mm
• 3.2 mm x 2.5 mm
• Frequency Select Input Supports 2 Predefined Frequencies
• High Stability: ±25, ±50 ppm
• Industrial: –40°C to 85°C
• Ext. Commercial: –20° to 70°C
• Qualified to MIL-STD-883
• 20x Better MTTF Than Quartz Oscillators
• Supply Range of 1.71V to 3.63V
• Short Sample Lead Time: <2 weeks
• Lead Free & RoHS Compliant

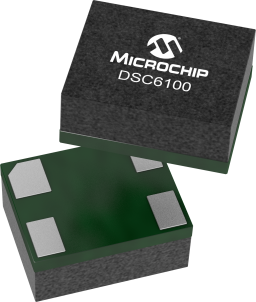

The DSC6000 family of MEMS oscillators combine the industry leading low power consumption and ultra-small packages with exceptional frequency stability and jitter performance over temperature. The single-output DSC6000 MEMS oscillators are excellent choices for use as clock references in small, battery-powered devices such as wearable and Internet of Things (IoT) devices in which small size, low power consumption, and long-term reliability are paramount.

The DSC6000 family consists of ultra-low power DSC60xx and a lower jitter version DSC61xx. They are available in ultra-small 1.6 mm x 1.2 mm and 2.0 mm x 1.6 mm packages. Other package sizes include: 2.5 mm x 2.0 mm and 3.2 mm x 2.5 mm. These packages are “drop-in” replacements for standard 4-pin CMOS quartz crystal oscillators.

For automotive grade product please refer to DSA6100 family.

Create an application specific part and order samples with the CLOCKWORKS CONFIGURATOR tool.
