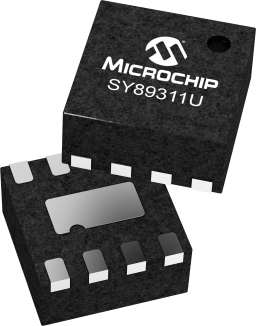

SY89311U
  • SY89311U

SY89311U

In Production

The SY89311U is a precision, high-speed 1:2 differential fanout buffer. Having within-device skews and output transition times significantly improved over the EL11V, the SY89311U is ideally suited for those applications which require the ultimate in AC performance in a small package.The differential inputs of the SY89311U employ clamping circuitry to maintain stability under open input conditions. If the inputs are left open, the Q outputs will be LOW.The differential inputs can accept 10/100K ECL/PECL signals (external termination required) and the outputs are 100K ECL/PECL compatible.....

Microchip Technology SY89311U Product Info

16 April 2026 2

Parameters

Description

1:2

Input

ECL/PECL/LVPECL/LVECL

Output

ECL/PECL/LVPECL/LVECL

Supply Voltage

2.5/3.3/5

Max Freq (GHz)

3

Icc (mA)

0

Max Within Device Skew (ps)

20

OE

False

Input Mux

False

Number Of Outputs

0

Buffer Type

Fanout

Fanout

1:2

Max Prop Delay (ps)

300

Features

    • 2.5V, 3.3V, and 5V power supply
    • >Guaranteed AC parameters over temperature:
    • fMAX >3.0GHz
    • <20ps output-to-output skew
    • <200ps tr/tf
    • <300ps propagation delay
    • 51fsRMS phase jitter (typical)
    • 100K compatible I/O
    • Wide temperature range: –40°C to +85°C
    • Available in ultra-small 8-pin MLF® (2mm x 2mm) package

Description

The SY89311U is a precision, high-speed 1:2 differential fanout buffer. Having within-device skews and output transition times significantly improved over the EL11V, the SY89311U is ideally suited for those applications which require the ultimate in AC performance in a small package.The differential inputs of the SY89311U employ clamping circuitry to maintain stability under open input conditions. If the inputs are left open, the Q outputs will be LOW.The differential inputs can accept 10/100K ECL/PECL signals (external termination required) and the outputs are 100K ECL/PECL compatible..
