In Production
+Vin min (V) |
6.5 |
+Vin max (V) |
90 |
Vout min (V) |
4.0 |
Vout max (V) |
90 |
Output Current (mA) |
100 |
Dimming |
No |
Parallelable |
Yes |
Package |
TO-252, TO-220 |
Features |
OTP, reverse polarity protection |

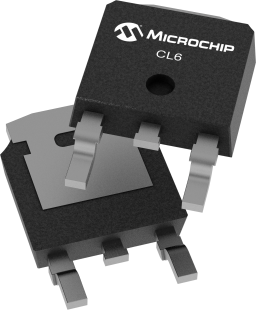

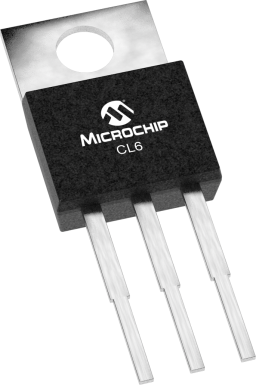

The CL6 is a fixed, linear current regulator designed for driving high brightness LEDs at 100mA from nominal 12V, 24V, or 48V supplies. With a maximum rating of 90V, it is able to withstand transients without the need for additional transient protection circuitry. The CL6 is offered in both TO-252 (D-PAK) and TO-220 packages. The tab on the TO-220 is ground, allowing heatsinking directly to a chassis without the need for electrically insulating spacers. Overtemperature protection shuts off the LED current when the die temperature rises above 135°C (nominal). Full LED current resumes when the die temperature falls below 105°C (nominal).
