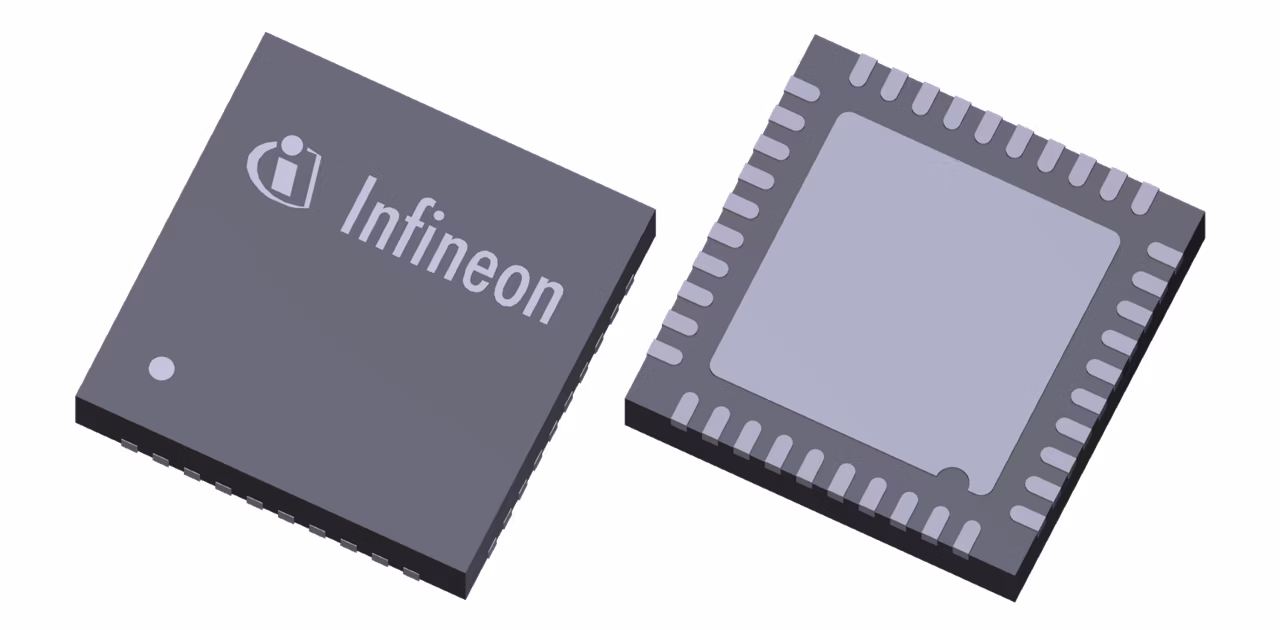

XMC1403-Q040X0200 AA
  • XMC1403-Q040X0200 AA

XMC1403-Q040X0200 AA

Active and preferred

The XMC1400 series belongs to the XMC1000 Family of industrial microcontrollers which are based on the ARM® Cortex®-M0 processor core. With higher core and peripheral clock XMC1400 provides up to 70% performance increase compared to the XMC1300. In addition to dedicated peripherals for motor and power control applications XMC1400 devices offer 2 CAN nodes and are supported with a development environment enabling short time-to market.

Infineon Technologies XMC1403-Q040X0200 AA Product Info

16 April 2026 1

Parameters

A/D Input Lines (incl. FADC)

12

Additional Features

Special purpose timer CCU8, POSIF, MATH co-processor, BCCU, 4x ACMP

CAN Nodes

2

CPU

ARM Cortex-M0

Digital I/O Pins

35

DMA Channels

0

DSP Functionality

no

EEPROM Emulation (Data-Flash)

Emulated

External Bus Interface

no

Family

XMC1400

Fast Flash Programming

no

Flash

200 kByte

Floating Point Unit

no

Frequency max

48 MHz

I/O Operation Voltages

1.8 V, 5.5 V

Instruction Width ([bits])

32/16

Number of ADC Modules

2

On-chip Clock Generation

yes

On-chip Voltage Regulator

yes

Oscillator Watchdog

yes

Power Mode

clock gating possible

Program Memory

200 kByte

Qualification

Industrial

Real Time Clock

yes

Secondary Core

N/A

Serial I/O Interfaces

4

SRAM (incl. Cache)

16 kByte

SRAM

16 kByte

Temperature

-40 to 105°C

Timed I/O Pins (PWM, CAPCOM)

16

Timer/Counter

8

Touch/LED Matrix Control

no

Type of Memory

Flash

Type of Serial I/O Interfaces

UART, SPI, I²C, I²S

Watchdog Timer

yes

Features

  • 48 MHz core / 96 MHz peripheral clock
  • Operating range 1.8 - 5.5 V, -40 - 105°C
  • 200KB Flash (ECC, cache), 16KB RAM
  • 12-bit ADC, 1 Ms/s, 14 inputs, 2x S&H
  • 8 x 16-bit capture, compare, PWM timers
  • 4 serial channels, 2x CAN / 32 MO
  • Real Time Clock, watchdog, PRNG
  • VQFN-40, 5x5 mm², 0.4mm pitch, 35 IO

Description

  • MCU for system control with CAN
  • Increased performance and up to 56 IOs
  • External crystal or 1% internal clock
  • Multiple capture/compare/PWM timer
  • ADC with digital data pre-processing
  • Fast analog and out of range comparator
  • 4x flexible serial ports plus CAN
  • Support for functional safety
  • Secure flash protection
  • Full support in ModusToolbox
