XDPE132G5H-G000
  • XDPE132G5H-G000

XDPE132G5H-G000

Active

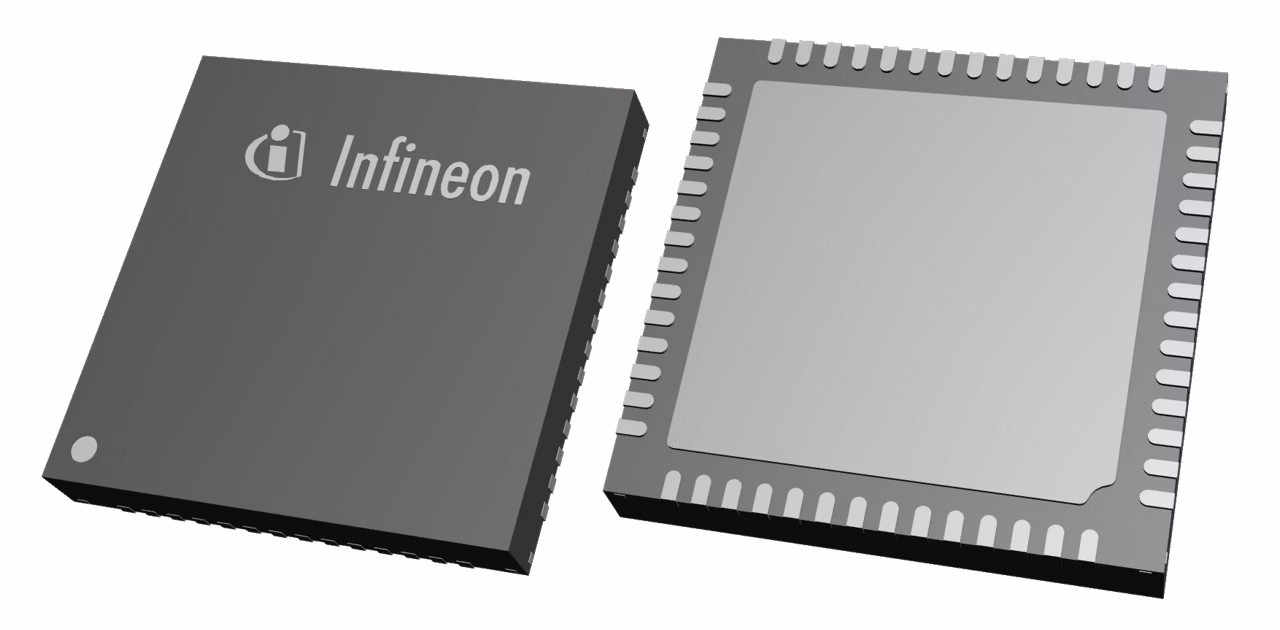

The XDP™ XDPE132G5H is a digital multi-phase buck controller that can be configured in single or dual loop mode and is optimized to support high performance processors that require AVSBus, AMD SVI2, or nVIDIA PWMVID. It supports up to 16 phases that can be flexibly assigned between the two loops. It offers digitally programmable load line thereby eliminating external load line components.

Infineon Technologies XDPE132G5H-G000 Product Info

16 April 2026 0

Parameters

Configuration

16+0 to 8+8

Interfaces

AVSBus, PMBus, SVI2, PWMVID

Maximum Phases

16

Package

QFN 7x7 56-pin

Processor Type

CPU / GPU / ASIC

Qualification

Industrial

Technology

DCIC

Voltage Outputs

2

Apps

Data center power solutions, Medium voltage IBC (48 V), Edge computing, Telecommunications infrastructure

Features

  • 16-phase dual loop PWM controller
  • I2C, PMBus Rev 1.3, AVSBus
  • 625 mV VID step via PMBUS VOUT_COMMAND
  • AMD SVI2 with Peak Current Control (PCC)
  • nVIDIA PWMVID compliant
  • Digitally programmable load line
  • Analog “IMON” output current reporting
  • 25 times User Programming section

Description

  • Digital control improves transient
  • Proprietary control for efficiency
  • Monitoring, telemetry via PMBus
