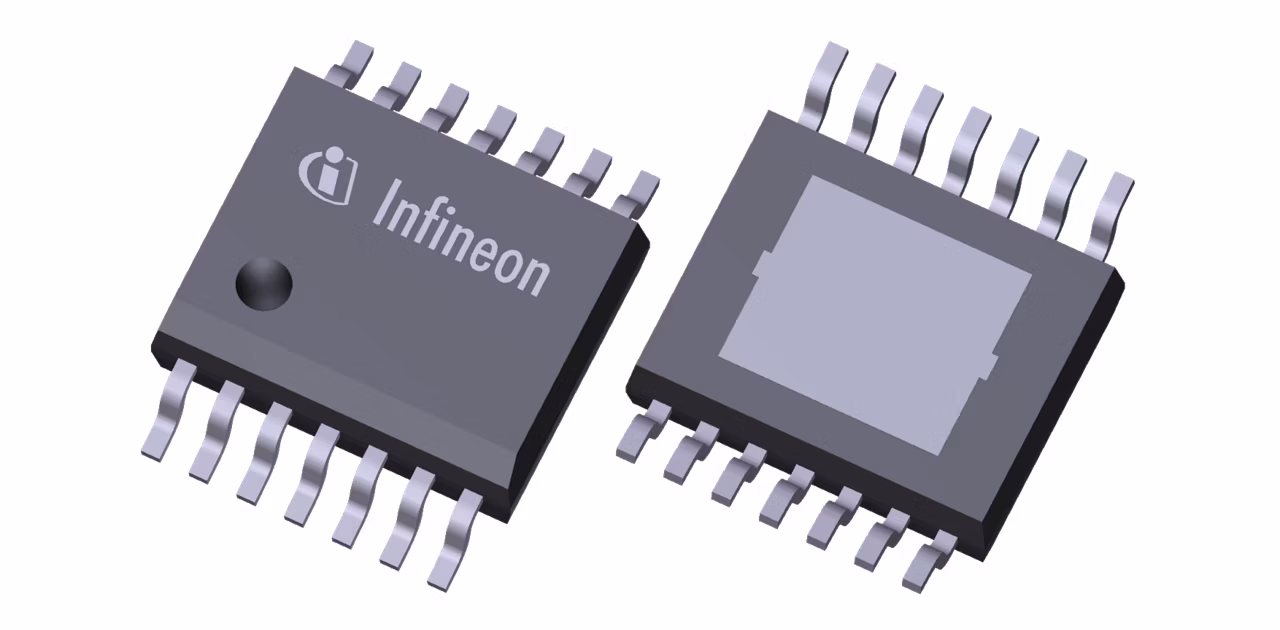

TLS820D0EL V50
  • TLS820D0EL V50

TLS820D0EL V50

The regulators, with an input range of 3V to 40V and a low 40μA quiescent current, are suitable for automotive or supply systems. They offer 200mA max output current, 2% voltage accuracy, fast regulation, and stability with a small 1μF ceramic capacitor. At currents below 100mA, the device has a very low 70mV typical dropout voltage, making it ideal for automotive systems during cranking.

Infineon Technologies TLS820D0EL V50 Product Info

16 April 2026 0

Parameters

Accuracy

2 %

Base Product

TLS820D0xx

Dropout Voltage

70 mV

Early Warning

No

Enable (=Inhibit)

Yes

Hold

No

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

3 V to 40 V

Output Current max

200 mA

Output Voltage Type

5.0 V

Over Voltage Protection

No

Planned to be available until at least

n.a

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

40 µA

Regulator Type

High Performance

Reset

Yes

Status Output

No

Watchdog

No

Apps

Windshield wiper system, Automotive LED lighting systems, Chassis control & safety

Features

  • Wide Input Voltage Range from 3.0 V to 40 V
  • Fixed Output Voltage 5 V
  • Output Voltage Precision ≤ ± 2 %
  • Output Current Capability up to 200 mA
  • Ultra Low Current Consumption typ. 40 µA
  • Very Low Dropout Voltage typ. 70 mV@100 mA
  • Stable with Ceramic Output Capacitor of 1 µF
  • Selectable Reset Delay at Power-On
  • Adjustable Reset Threshold down to 2.50 V
  • Enable, Undervoltage Reset, Overtemperature Shutdown
  • Output Current Limitation
  • Wide Temperature Range
  • Green Product (RoHS compliant)
  • AEC Qualified

Description

  • Very wide input voltage range
  • Fast voltage regulation loop
  • Supports voltage cranking application
  • Very low dropout
