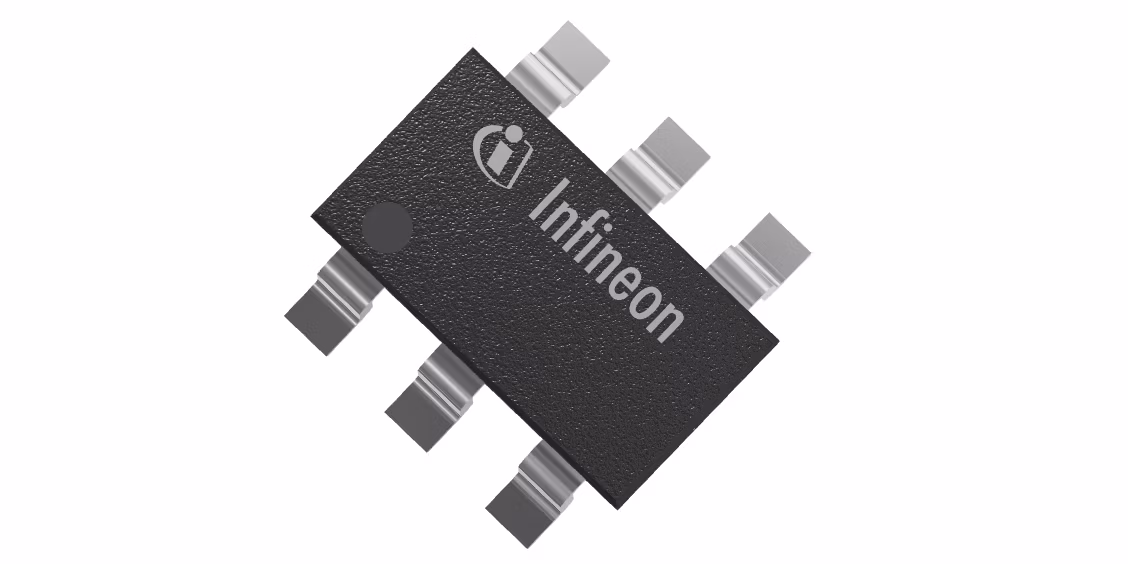

CDM10V-2
  • CDM10V-2

CDM10V-2

Active

CDM10V-2, is a fully integrated 0-10V dimming interface IC and comes in a 6 pin SOT package to cover space requirements on small PCBs. The IC can be used to transmit analog voltage based signals from a 0-10V dimmer or potentiometer to the dimming or PWM input of a lighting controller IC in the form of a current based PWM signal to drive an external opto-coupler.

Infineon Technologies CDM10V-2 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.19

Dimm-to-Off

Enabled

Dimmer/Resistor Bias Current

200 µA

Dimming hysteresis

No

Iout

5 mA

Output Frequency (PWM)

1 kHz

Type

0-10V Dimming Interface IC

VS

25 V

Features

  • PWM output frequency: 1kHz
  • Dimmer/Resistor bias current: 200µA
  • Dim-to-off: enabled

Description

  • Wide input Voltage range: 11-25V
  • Replaces many external components
  • Minimum variation from device to device
