TLS208D1EJV33
  • TLS208D1EJV33

TLS208D1EJV33

Active and preferred

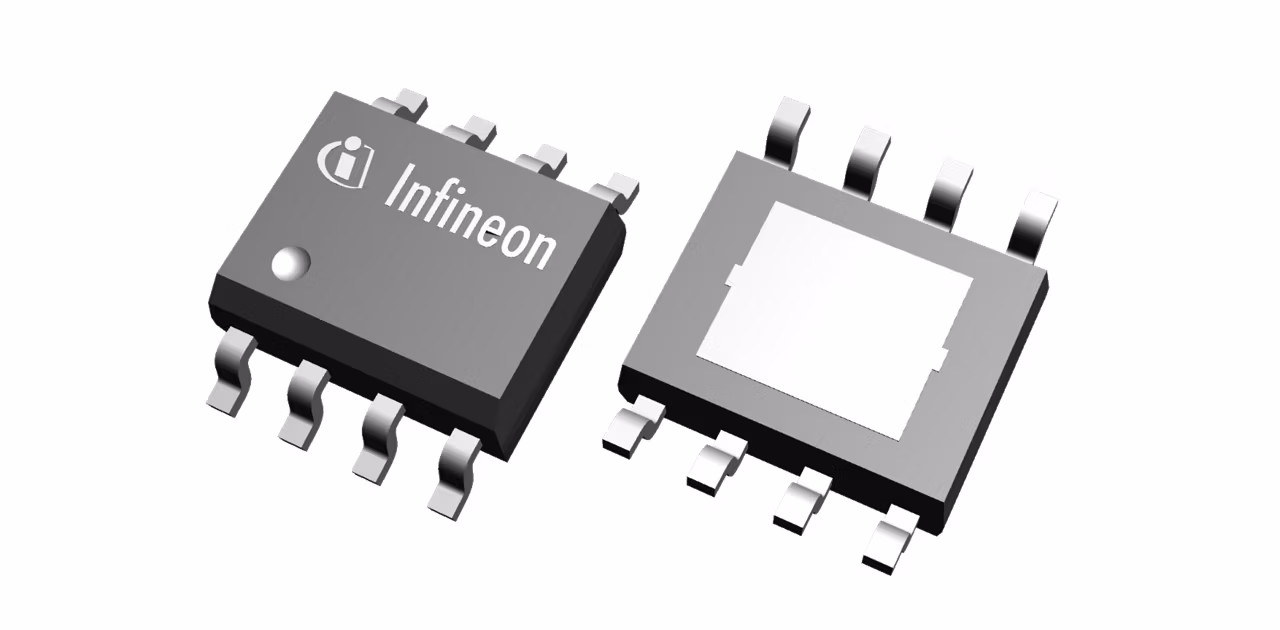

The IC regulates input voltage VI (2.7V ≤ VI ≤ 18V) to adjustable output voltage (0.8V-5.25V or fixed with ±2% precision). TLS208D1EJV33 suits applications with pre-regulator connections. Available in PG-DSO-8 (Exposed Pad) and TSON-10 packages. Features: enable, adjustable reset threshold. Protected against overload, short circuit, over-temperature. Input capacitor CI compensates line influences. Output capacitor CQ ensures stability.

Infineon Technologies TLS208D1EJV33 Product Info

16 April 2026 0

Parameters

Accuracy

2 %

Base Product

TLS208D1xxVxx

Dropout Voltage

900 mV

Early Warning

No

Enable (=Inhibit)

Yes

Hold

No

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

2.7 V to 18 V

Output Current max

800 mA

Output Voltage Type

3.3 V

Over Voltage Protection

No

Planned to be available until at least

2037

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

90 µA

Regulator Type

Post Regulator

Reset

Yes

Status Output

No

Watchdog

No

Features

  • Adjustable Output V from 0.8 V to 5.25 V
  • Output Voltage Accuracy of ± 2 %
  • Static Output Currents up to 800 mA
  • Enable Functionality
  • Undervoltage with Power-On Reset Delay
  • Adjustable Reset Threshold
  • Low Dropout Voltage: typ. 400mV at 400mA
  • Very Low Current Consumption: typ. 90 μA

Description

  • Less system cost
  • Very high power supply ripple rejection
  • Suitable for cranking → 2.7V input
  • Power saving with enable feature
