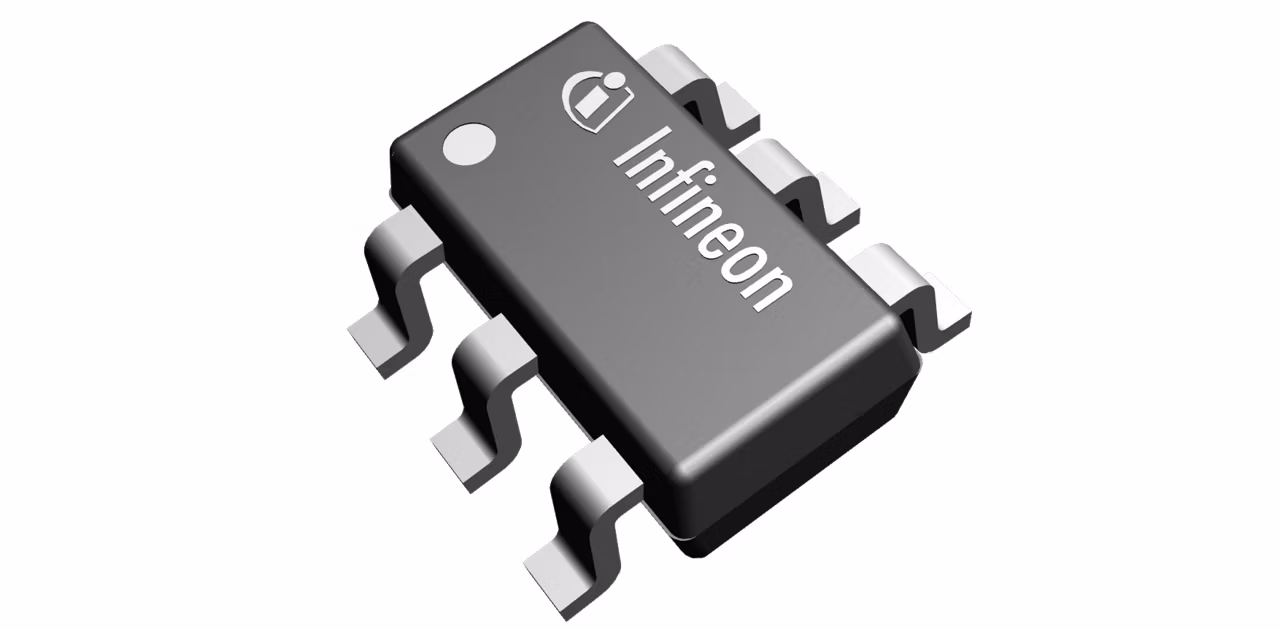

TLI4966G
  • TLI4966G

TLI4966G

Active and preferred

Introducing XENSIV™ TLI4966G Hall sensor: A double Hall switch for rotating pole wheel apps. Provides speed/direction signal at interface pins, enabling robust index counting system for anti-pinch prevention. It's cost-effective with fixed Hall plates for precise mounting and reliable direction detection. Easily integrates with standard µControllers, ensuring a highly reliable system. Equipped with robust supply/I/O pins for remote sensor modules.

Infineon Technologies TLI4966G Product Info

16 April 2026 1

Parameters

Bhyst

15 mT

Bop

7.5 mT

Brp

-7.5 mT

Interfaces

open collector

Language

Magnetics

Planned to be available until at least

2034

Product Category

Sensors

Product Description

High precision industrial dual Hall latch in a gullwing package

Supply Voltage range

2.7 V to 24 V

Temperature range

-40 °C to 150 °C

Type

Double Hall

Features

  • 2.7 V to 24 V supply voltage operation
  • Operation from unregulated power supply
  • High sensitivity
  • Active error compensation
  • Reverse battery protection (-18 V)
  • Superior temperature stability
  • Low jitter (typ. 1 μs)
  • Digital output signals
  • Bipolar version
  • Excellent matching of the 2 Hall probes
  • Hall plate distance 1.45 mm
