TLE9868QXB20
  • TLE9868QXB20

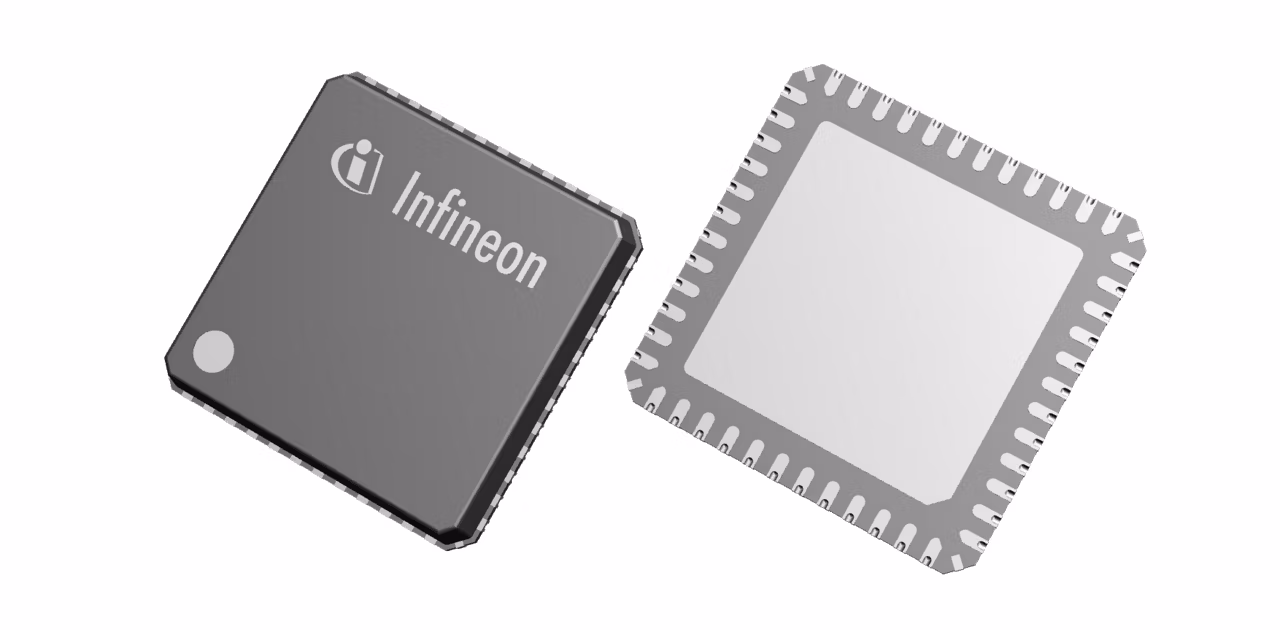

TLE9868QXB20

Active and preferred

The MOTIX™ TLE9868QXB20 is a highly integrated single-chip 2-Phase motor control solution that combines an industry-standard Arm® Cortex®-M3 core, LIN transceiver, power supply, and H-bridge driver. Featuring two differential 14-bit sigma-delta ADCs, this device is an ideal solution for automotive motor control applications that require precise control and increased reliability, such as wipers.

Infineon Technologies TLE9868QXB20 Product Info

16 April 2026 0

Parameters

Family

MOTIX™ motor control SoCs

Flash

128 kByte

Frequency

20 MHz

GPIO

15

Interfaces

PWM, LIN

MCU

Arm® Cortex®-M3

Motor Driver

H-bridge driver

Planned to be available until at least

2035

PN MOS DRIVER

No

Power Stage

No

RAM

4 kByte

SD-ADC

yes

Supply Voltage range

5.5 V to 28 V

Temperature range

-40 °C to 150 °C

Temperature

- 40°C - 150°C

Apps

Roof control module, Windshield wiper system, General purpose motor drive

Features

  • 32-bit Arm® Cortex®-M3 up to 20 MHz
  • Single power supply from 5.5 V to 28 V
  • On-chip oscillator and PLL for clock
  • 128 KB flash, 4 KB RAM, EEPROM emu
  • Integrated LIN transceiver
  • High voltage monitoring pin (MON)
  • Fast synchronous communication (SSC)
  • Two-phase bridge driver (BDRV)
  • Low-side shunt current sense amplifier
  • 8-bit and 10-bit ADCs
  • 2x14-bit SDADC, 2 differential inputs
  • Tj: -40°C to 150°C, Package: VQFN-48

Description

  • Best-in-class device
  • Optimized BOM cost
  • Compact dimensions
  • Premium design-in experience
