CDM10V-4
  • CDM10V-4

CDM10V-4

Active and preferred

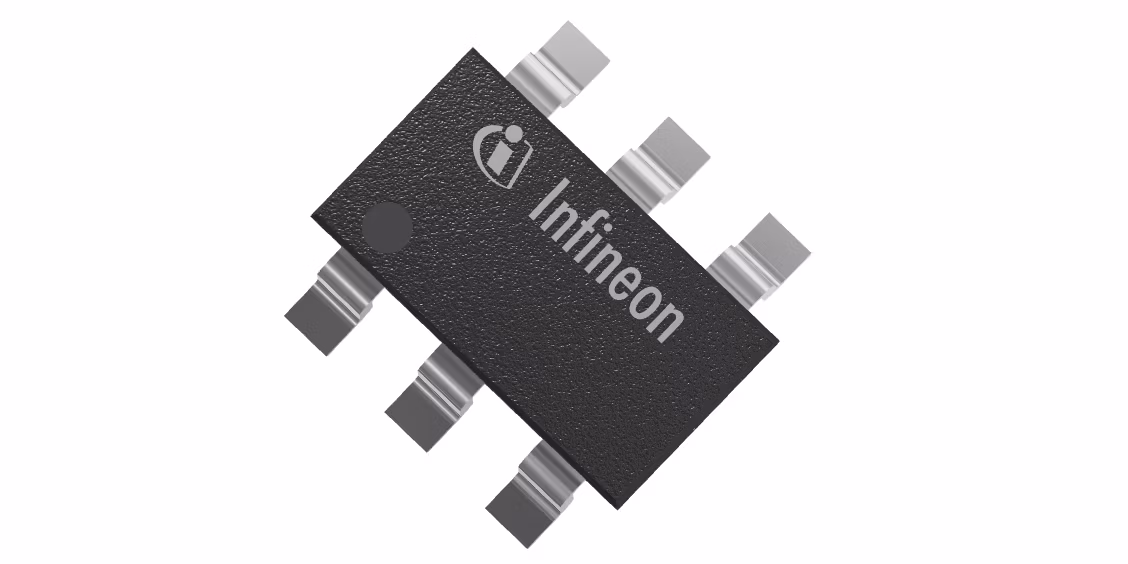

CDM10V-4 is a fully integrated 0-10V dimming interface IC and comes in a 6-pin SOT package to cover space requirements on small PCBs. The IC can be used to transmit analog voltage based signals from a 0-10V dimmer or potentiometer to the dimming or PWM input of a lighting controller IC in the form of a current based PWM signal to drive an external opto-coupler.

Infineon Technologies CDM10V-4 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.19

Dimm-to-Off

Enabled

Dimmer/Resistor Bias Current

100 µA

Dimming hysteresis

No

Iout

5 mA

Output Frequency (PWM)

2 kHz

Type

0-10V Dimming Interface IC

VS

25 V

Features

  • PWM output frequency: 2kHz
  • Dimmer/resistor bias current: 100µA
  • Dim-to-off: enabled

Description

  • Wide input Voltage range: 11-25V
  • Replaces many external components
  • Minimum variation from device to device
