TLE9867QXW20
  • TLE9867QXW20

TLE9867QXW20

Active and preferred

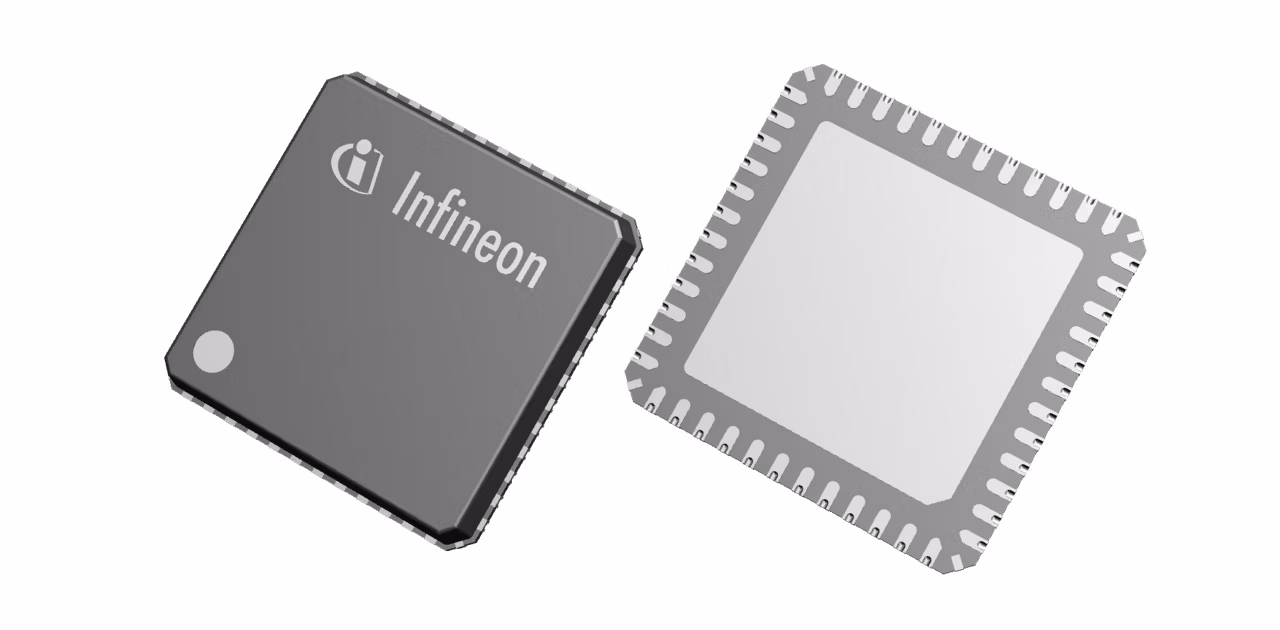

The MOTIX™ TLE9867QXW20 is a single-chip H-Bridge motor control solution that combines an Arm® Cortex®-M3 core, flash memory, analog and mixed-signal peripherals, a LIN transceiver, and driving stages in a single package. This compact Grade 0 device is designed to address the specific needs of space- and cost-critical automotive DC motor control applications, such as sunroof and power window lift.

Infineon Technologies TLE9867QXW20 Product Info

16 April 2026 0

Parameters

Family

MOTIX™ motor control SoCs

Flash

64 kByte

Frequency

24 MHz

GPIO

15

Interfaces

PWM, LIN

MCU

Arm® Cortex®-M3

Motor Driver

H-bridge driver

Operational Amplifier

Yes

Planned to be available until at least

2035

PN MOS DRIVER

No

Power Stage

No

RAM

6 kByte

SD-ADC

No

Supply Voltage range

5.5 V to 28 V

Temperature range

-40 °C to 175 °C

Temperature

- 40°C - 175°C

Apps

Automotive e-compressor - high-voltage

Features

  • 32-bit Arm® Cortex®-M3 up to 24 MHz
  • Single power supply from 5.5 V to 28 V
  • On-chip oscillator and PLL for clock
  • 64 KB flash, 6 KB RAM, EEPROM emu
  • Integrated LIN transceiver
  • High voltage monitoring pin (MON)
  • Fast synchronous communication (SSC)
  • Two-phase bridge driver (BDRV)
  • Low-side shunt current sense amplifier
  • 8-bit and 10-bit ADCs
  • Temperature range: -40°C to 175°C
  • Compact VQFN-48 package

Description

  • Best-in-class device
  • Optimized BOM cost
  • Compact dimensions
  • Premium design-in experience
