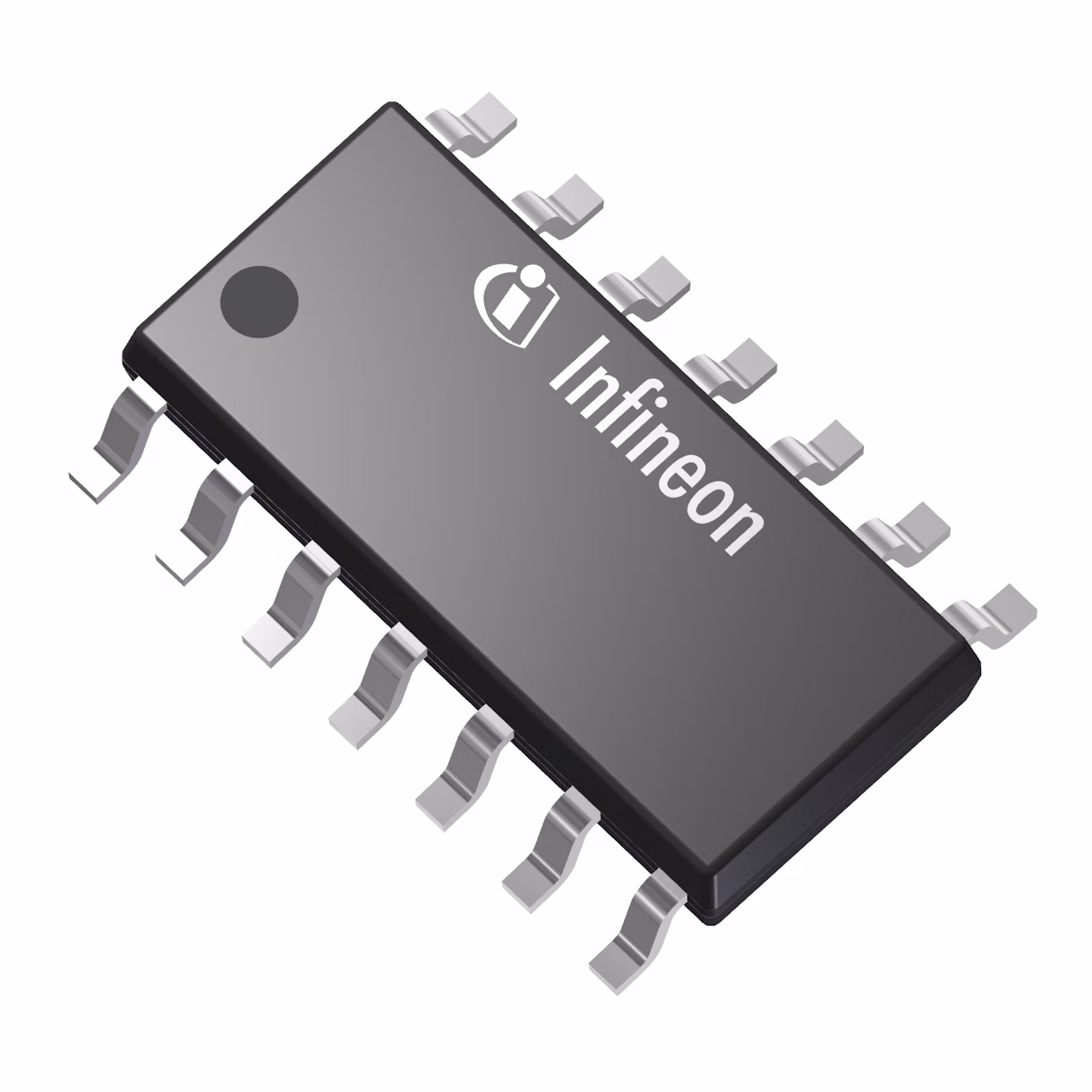

TLE9252VSK
  • TLE9252VSK

TLE9252VSK

Active and preferred

The transceiver meets ISO11898-2 andSAE J2284-4/-5 standards. TLE9252VSK offers Bus Wake-up Pattern (WUP) function with optimized filter time (0.5μs < tFilter< 1.8μs). Modes optimized for reduced current consumption: Normal-operating, Sleep, Stand-by. Sleep Mode (< 25μA) detects Wake-Up Pattern on HS CAN bus. VIO enables 3.3V/5V microcontroller interfaces. TLE9252VSK: standard DSO-14, TLE9252VLC: tiny leadless TSON-14 with LTI for AOI capability.

Infineon Technologies TLE9252VSK Product Info

16 April 2026 14

Parameters

Additional Features

NSTB, WK, EN, NERR, INH, Vio, no SPLIT PIN

Base Product

TLE925x

Bus Wake-Up Capability

Yes

Family

CAN Transceiver

Features

NSTB, WK, EN, NERR, INH Output, Vio, Receive Only Mode

Language

IBIS

Package

PG-DSO-14

Planned to be available until at least

2039

Product Category

Transceivers

Qualification

Automotive

Quiescent Current

< 25 µA in sleep mode

Standards

ISO11898-2

Supply Voltage

5 V

Transmission Rate max

5 MBit/s

Type

CAN, CAN FD

Wake-up Inputs

Bus Wake-up, Wake-up Pin

Apps

Automotive primary power distribution unit, Automotive body control module (BCM), Chassis control & safety, Electric brake booster, EV traction inverter

Features

  • ISO 11898-2 (2016) and SAE J2284-4/-5
  • symmetrical loop delay for CAN FD data
  • 5MBit/s
  • Bus Wake-up Pattern (WUP)0.5μs 1.8μs
  • Excellent ESD robustness
  • Ultra-Low Sleep Mode Current: Max. 26μA
  • Extended Supply Range for VCC and VIO
  • Autonomous Bus Biasing
  • VIO i/p for Adapting MC Voltage
  • Green Product (RoHS compliant)
  • AEC Qualified
