Active and preferred
Base Product |

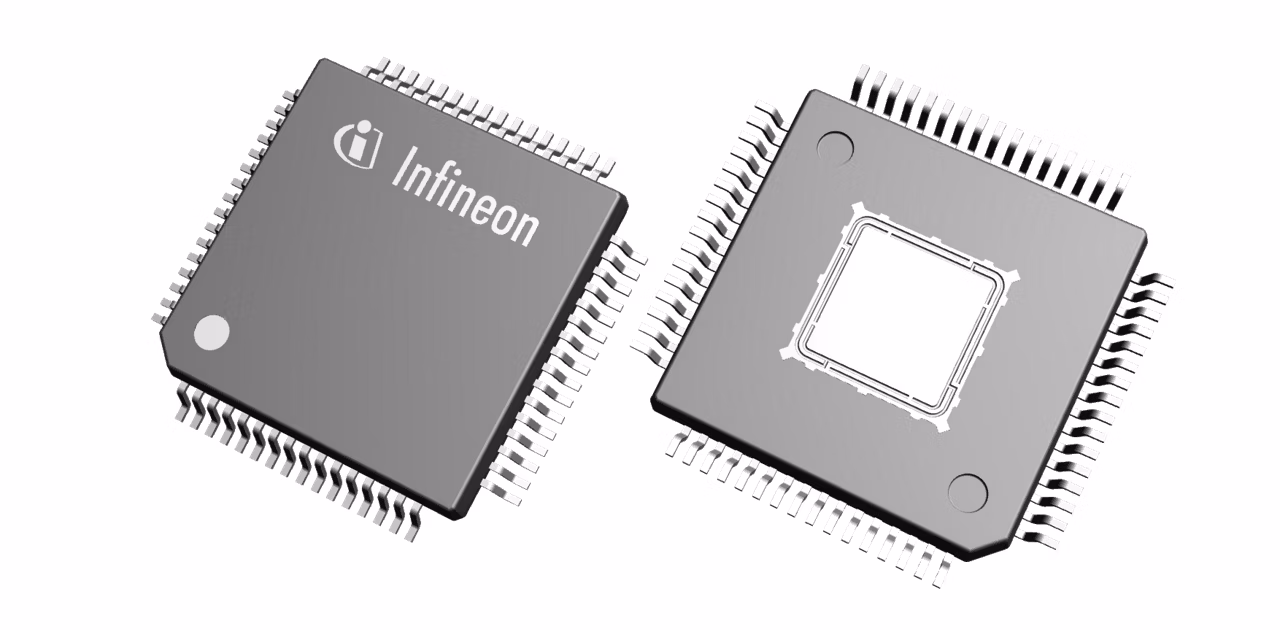

TLE9243QK |
Classification |
ISO 26262-compliant |
Comments |
Companion power IC for Aurix™ MCU and peripherals, Buck/Boost PreReg, 3 linear PostRegs (µC, COM, REF), 2 trackers, 3 battery supplied linear regulators and sensor interface channels, ISO 26262-compliant, 2 High-side gate drivers, Safety Features, Grade 0, Automotive Transmission PMIC |
Compatible Microcontrollers |
AURIX™ TC2x, TC3x , TRAVEO™ T1G |
Enable (=Inhibit) |
Yes |
Iout |
50 mA, 50 mA, 50 mA, 150 mA, 150 mA, 150 mA, 1500 mA, 800 mA, 240 mA |
Iq |
25 µA |
ISO 26262 |
ASIL-D |
Operating Temperature range |
-40 °C to 175 °C |
Operating Voltage range |
3 V to 40 V |
Over Voltage Protection |
Yes |
Package |
PG-LQFP-64 |
Planned to be available until at least |
2039 |
Product Group |
PMIC |
Qualification |
Automotive |
Regulator Type |
Buck-boost |
Reset |
Yes |
Target Application |
Safe Control |
Tolerance |
2 %, 3.3 %, 0.2 %, 2 %, 2.6 %, 1 %, 3.3 %, 0.2 %, 3.3 % |
VQ (multiple) |
5.0 V, 5.0 V, 5.8 V, 5.0 V, 5.0 V, 5.0 V, 9.0 V, 9.0 V, 9.0 V |
Watchdog |
Window-WD, Functional-WD |
Automotive, Active suspension control, Electric parking brake
