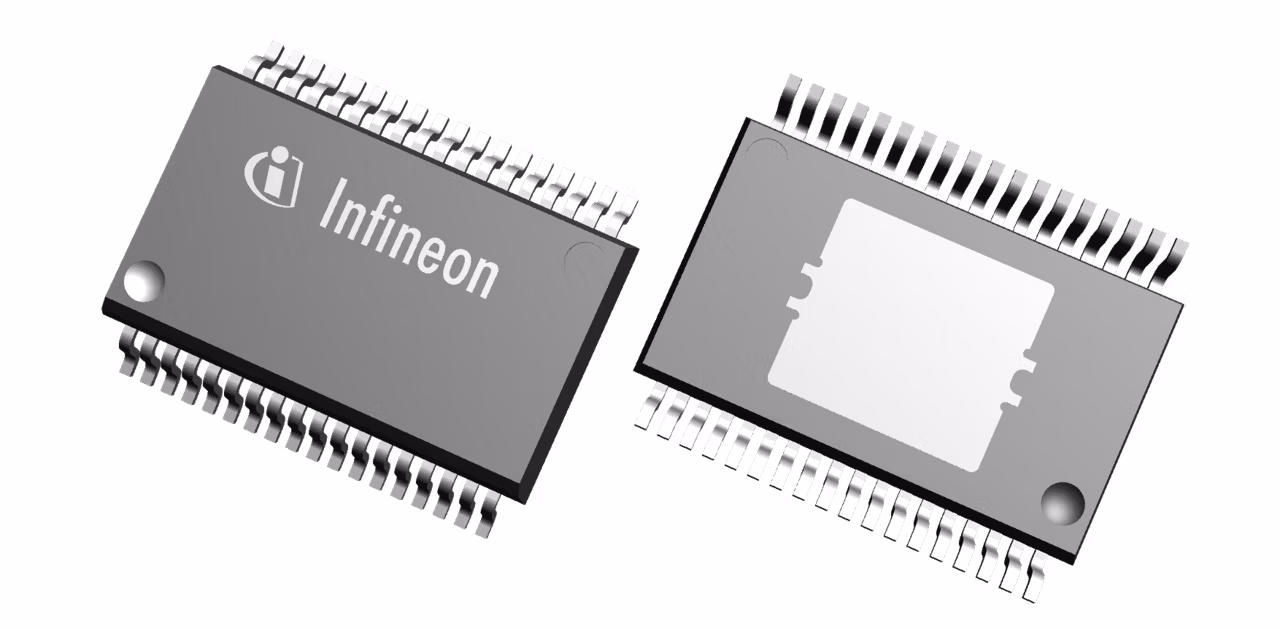

TLE7368E
  • TLE7368E

TLE7368E

Active

The TLE7368 is a power supply solution for next-gen 32-bit microcontrollers. It includes a step-down converter, two linear regulators, and voltage trackers. With controlled power sequencing and stand-by mode, it ensures efficient power management. The device follows the TLE6368 concept and delivers stable supply voltages (5 V, 3.3 V, 1.5 V) with high current capability.

Infineon Technologies TLE7368E Product Info

16 April 2026 0

Parameters

Base Product

TLE7368

Comments

Automotive PMIC, selectable StandBy-Vreg (1.0/2.6V) and 2 voltage trackers (5V), 3 linear post regulators (5V, 3.3/2.6V, 1.5V)

Compatible Microcontrollers

AURIX™ TC3x

Enable (=Inhibit)

Yes

Iout max

700 mA, 70 mA, 105 mA, 50 mA, 30 mA, 800 mA

Iq

120 µA

ISO 26262

QM

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

4.5 V to 45 V

Over Voltage Protection

No

Package

PG-DSO-36

Planned to be available until at least

2029

Product Group

PMIC

Qualification

Automotive

Regulator Type

Buck

Reset

Yes

Target Application

Safe Control

Tolerance

2%

VQ (multiple)

5.0 V, 3.3 V/2.6 V, 1.5 V, 1.0 V/2.6 V

Watchdog

Window-WD

Features

  • High efficient next generation system
  • Wide battery I/P V R < 4.5 V up to 45 V
  • Operating temperature R Tj=-40°Cto+150°C
  • AMD SVI2 Rev 1.10 compliant with (PCC)
  • Post-regulators
  • LDO3 control NPN power stage: 1.5V ±2%
  • Lowest consumption stand-by regulator
  • Hardware controlled on/off logic
  • Undervoltage detection
  • Window watchdog circuit
  • Overcurrent protection on all regulators

Description

  • High efficiency for complex supply sys
  • Low current consumption in stand-by
  • Efficient Power Networks:Simple Sol's!
  • Monitoring and control of µC by reset
  • Thermal enhanced exposed-pad
