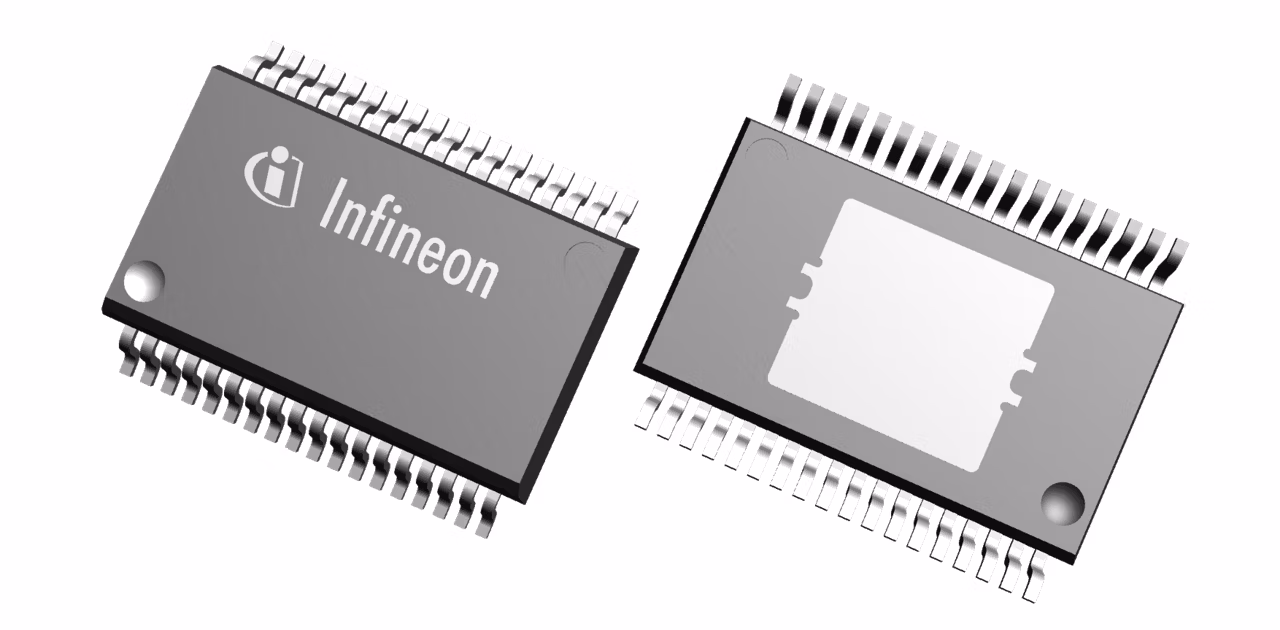

TLE7368-3E
  • TLE7368-3E

TLE7368-3E

Active

Device supplies and monitors 32bit microcontrollers with multiple voltage levels. Buck converter, regulators, and voltage followers reduce power dissipation. Pre-regulator outputs 5.5V, followed by 5V and 3.3V(2.6V) regulators. Integrated control circuit with external power stage.Power sequencing for controlled power-up. Voltage trackers and undervoltage detection. Standby mode for energy saving. TLE7368 based on Infineon's Power technology SPT™.

Infineon Technologies TLE7368-3E Product Info

16 April 2026 0

Parameters

Base Product

TLE7368

Comments

Automotive PMIC, selectable StandBy-Vreg (1.0/2.6V) and 2 voltage trackers (5V), 3 linear post regulators (5V, 3.3/2.6V, 1.5V)

Compatible Microcontrollers

AURIX™ TC3x

Enable (=Inhibit)

Yes

Iout max

700 mA, 70 mA, 105 mA, 50 mA, 30 mA, 800 mA

Iq

120 µA

ISO 26262

QM

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

4.5 V to 45 V

Over Voltage Protection

No

Package

PG-DSO-36

Planned to be available until at least

2029

Product Group

PMIC

Qualification

Automotive

Regulator Type

Buck

Reset

Yes

Target Application

Safe Control

Tolerance

2%

VQ (multiple)

5.0 V, 3.3 V/2.6 V, 1.3 V, 1.0 V/2.6 V

Watchdog

Window-WD

Apps

Automotive, EV traction inverter, On-board charging (OBC)

Features

  • High efficient next generation system
  • Wide battery I/P V R < 4.5 V up to 45 V
  • Operating temperature R Tj=-40°Cto+150°C
  • AMD SVI2 Rev 1.10 compliant with (PCC)
  • Post-regulators
  • LDO3 control NPN power stage: 1.3V ±2%
  • Lowest consumption stand-by regulator
  • Hardware controlled on/off logic
  • Undervoltage detection
  • Window watchdog circuit
  • Overcurrent protection on all regulators

Description

  • Powertrain: Transmission, EMS
  • Safety: EPS
