TLE7184F3V
  • TLE7184F3V

TLE7184F3V

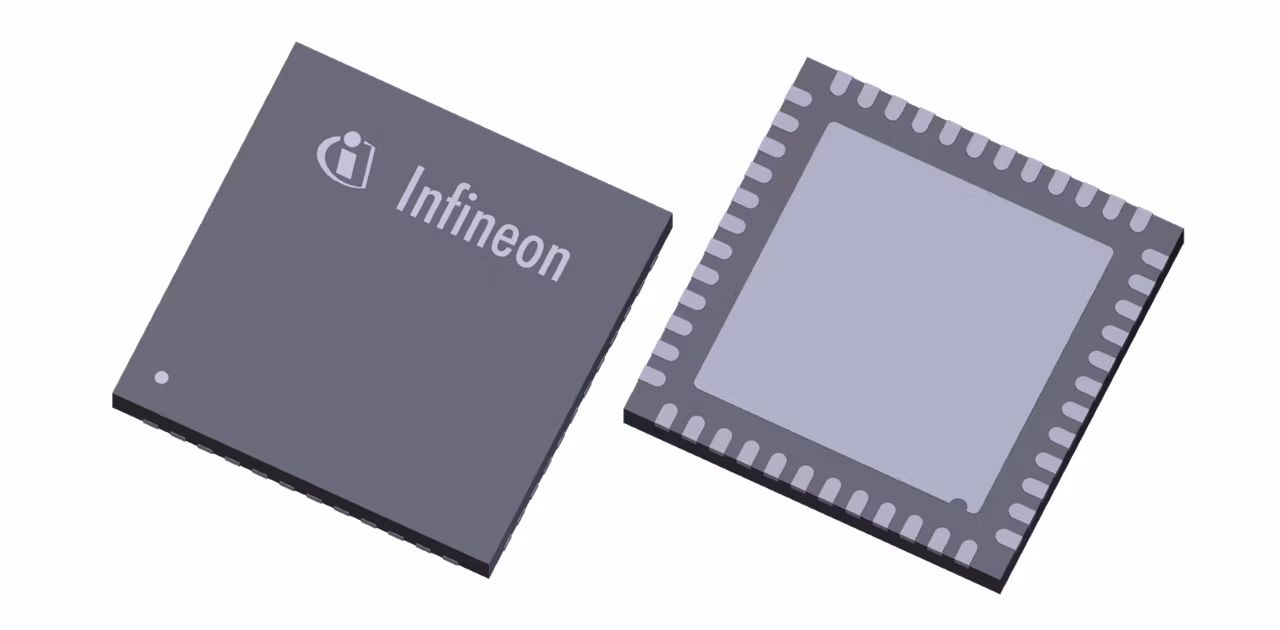

The MOTIX™TLE7184F-3V is a system IC for Brushless Motor Control. It incorporates a voltage supply for a µC, a bridge driver for a B6 configuration, an application typical PWM interface. Its exposed pad package allows the usage even at high ambient temperatures.

Infineon Technologies TLE7184F3V Product Info

16 April 2026 0

Parameters

Certifications

Q100

Classification

QM

Configuration

3-phase

Control Interface

PWM

Current Sense Amplifier

1x CSA

Diagnostics

UV, OV, OC, SCD, OT, VDD supervision

Driving Capability

130nC at 20kHz

Features

OPAMP, Short Circuit Protection, Deadtime Control

Marketing Priority

10

Qualification

Automotive

Supply Voltage range

6 V to 45 V

Switch Type

MOSFET

Temperature range

-40 °C to 150 °C

Voltage Regulator Output

3.3 V / 70 mA

Features

  • Drives 6 N-channel Power MOSFETs
  • 3.3V Vreg-controller to power µC
  • Integrated switch for VDH voltage
  • Separate control input for each MOSFET
  • Adjustable dead time
  • One current sense amplifier
  • 0…94% duty cycle at 25 kHz PWM frequency

Description

  • Integrated System IC with PWM interface
  • Supply for 3.3V µC up to 70mA integrated
  • Fast/precise op-amp for current measure.
  • Optimized features for fan applications
