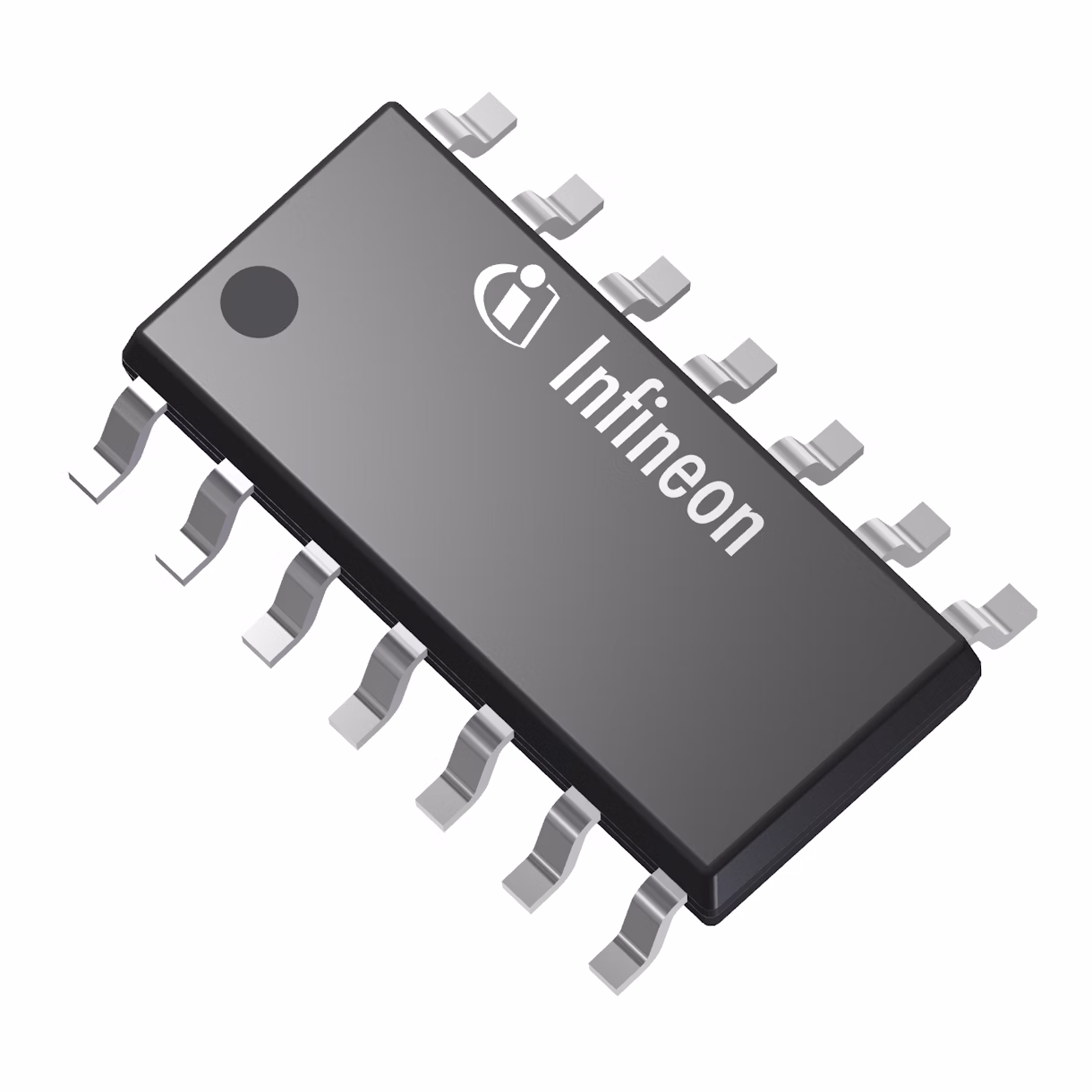

TLE6389-2G V50
  • TLE6389-2G V50

TLE6389-2G V50

The TLE6389 utilizes a unique PWM/PFM control scheme with up to 100% duty cycle, resulting in low dropout voltage and no minimum load requirements. It drives an external P-channel MOSFET, offering design flexibility for up to 12.5W output power and supports input voltages up to 60V. The adjustable version, TLE6389-2GV, can be shut down via the Enable input, reducing input current to <2μA.

Infineon Technologies TLE6389-2G V50 Product Info

16 April 2026 0

Parameters

Base Product

TLE6389-xGVxx

Budgetary Price €/1k

1.18

Comments

Automotive Step-down PMOS controller, suitable for truck applications

Inhibit

Yes

IQ max

2300 mA

Iq

130 µA

Mounting

SMT

Operating Temperature range

-40 °C to 150 °C

Output Current Type

Buck Converter

Protect

Yes

Regulator Type

Buck Controller

Reset

Yes

Tolerance

3%

VQ (multiple)

5.0V

Watchdog

No

Features

  • Input voltage range from < 5V up to 60V
  • Output voltage: 5V fixed
  • Output voltage accuracy: 3%
  • Output current up to 2.3A
  • 100% maximum duty cycle
  • Less than 120μA quiescent current at low loads1
  • Fixed 360kHz switching frequency
  • Frequency synchronization input for external clocks
  • Current Mode control scheme
  • Integrated output under voltage Reset circuit (threshold: 4.65 >V)
  • On chip low battery detector (on chip comparator)
  • Automotive temperature range -40°C to 150 °C
  • Green Product (RoHS compliant)
  • AEC qualified

Description

  • Suitable as well for truck systems (24V-net)
  • low drop-out by 100%DC
  • Suitable for permanently Vbat-connected systems
  • Reset generator controlling µC
