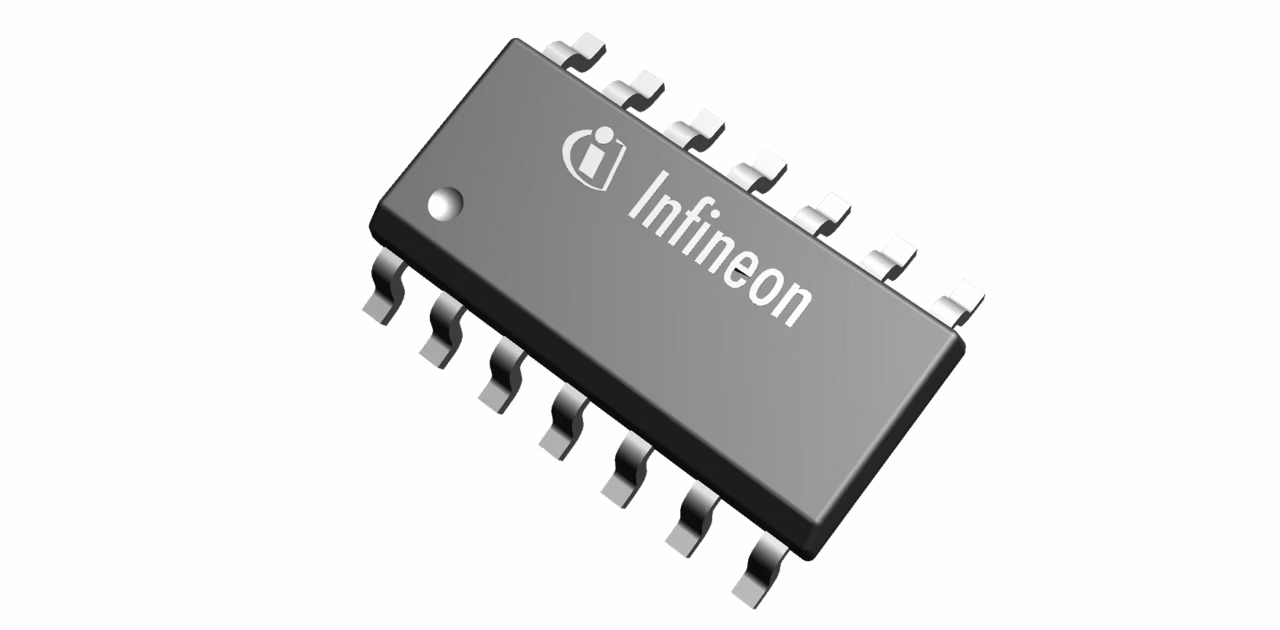

TLE6251-3G
  • TLE6251-3G

TLE6251-3G

The TLE6251-3G, successor to TLE6251G, offers passive Power Down behavior for mixed power supply HS-CAN networks. It provides low quiescent current operation modes, minimizes electromagnetic emission, and fully meets ISO11898-5 requirements. Integrated in a RoHS compliant PG-DSO-14 package, it utilizes Infineon Smart Power Technology SPT® for industry-leading ESD robustness and high electromagnetic immunity tailored for automotive conditions.

Infineon Technologies TLE6251-3G Product Info

16 April 2026 0

Parameters

Additional Features

NSTB, WK, EN, NERR, INH Output, Vio, NSTB

Base Product

CAN Classic

Bus Wake-Up Capability

Yes

Family

Classical CAN 1MBit/s

Features

NSTB, Receive Only Mode, Vio, NERR, WK, EN, INH Output

Product Category

Transceivers

Qualification

Automotive

Quiescent Current

< 30 µA at 5 V standby

Standards

ISO11898-5

Supply Voltage

3.3 V, 5 V

Transmission Rate max

1 MBit/s

Type

CAN

Wake-up Inputs

Bus Wake-up, Wake-up Pin

Features

  • HS CAN Transceiver with data transmission rates up to 1 MBaud
  • Compliant to ISO 11898-5
  • Very low power consumption in Sleep mode
  • Bus Wake-Up and local Wake-Up
  • Inhibit output to control external circuitry
  • Separate V IO input to adapt different micro controller supply voltages
  • Separate output for failure diagnosis
  • Optimized for low electromagnetic emission (EME)
  • Optimized for a high immunity against electromagnetic interference (EMI)
  • Very high ESD robustness, ± 9 kV according to IEC 61000-4-2
  • Protected against automotive transients
  • Receive-Only mode for node failure analysis
  • TxD time-out function and RxD recessive clamping with failure indication
  • TxD to RxD short circuit recognition with failure indication
  • CANH and CANL short circuit recognition with failure indication
  • Bus dominant clamping diagnosis
  • Under-voltage detection at V CC, V IO and V S
  • Power-Up and Wake-Up source recognition
  • Short circuit proof and Over-Temperature protection
  • Green Product (RoHS compliant)
  • AEC Qualified
