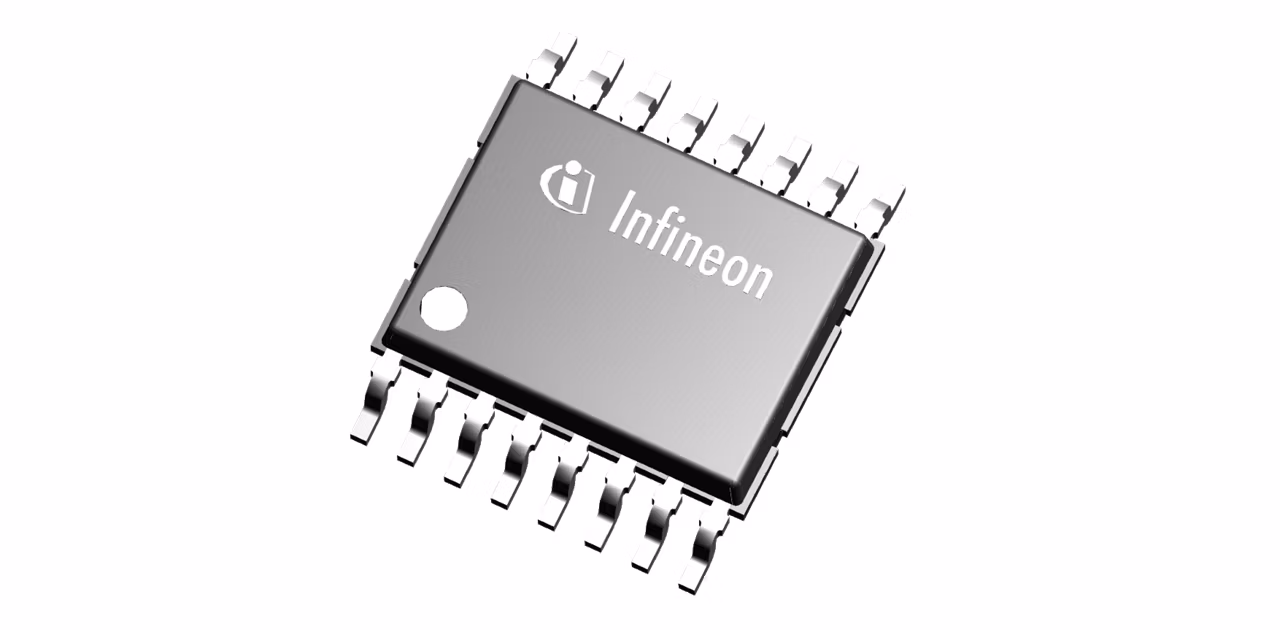

TLE5309D E5201
  • TLE5309D E5201

TLE5309D E5201

Active and preferred

TLE5309D: Redundant angle sensor with analog outputs. Combines GMR & AMR sensors in one package. Measures 0-180° (AMR) & 0-360° (GMR) angles. Differential MR bridge signals, independent of magnetic field strength. Suitable for differential or single-ended applications. Separate supply & ground pins for independent operation.

Infineon Technologies TLE5309D E5201 Product Info

16 April 2026 0

Parameters

Classification

ISO 26262-ready

Interfaces

Analog

ISO 26262

ready

Magnetic field range

21 mT to 50 mT

Package

Dual SMD

Planned to be available until at least

2033

Supply Voltage range

-0.5 V to 6.5 V

Supply Voltage ((V))

-0.5-6.5

Technology

AMR/GMR

Temperature range

-40 °C to 125 °C

Features

  • Supply pins for AMR and GMR sensor
  • Diverse design: GMR, AMR sensor
  • Low current consumption
  • 360° contactless angle measurement
  • Air gap immune with MR sensing
  • Operating temperature: -40°C to 125°C
