TLE5046SIC-PWM2-R050
  • TLE5046SIC-PWM2-R050

TLE5046SIC-PWM2-R050

Active and preferred

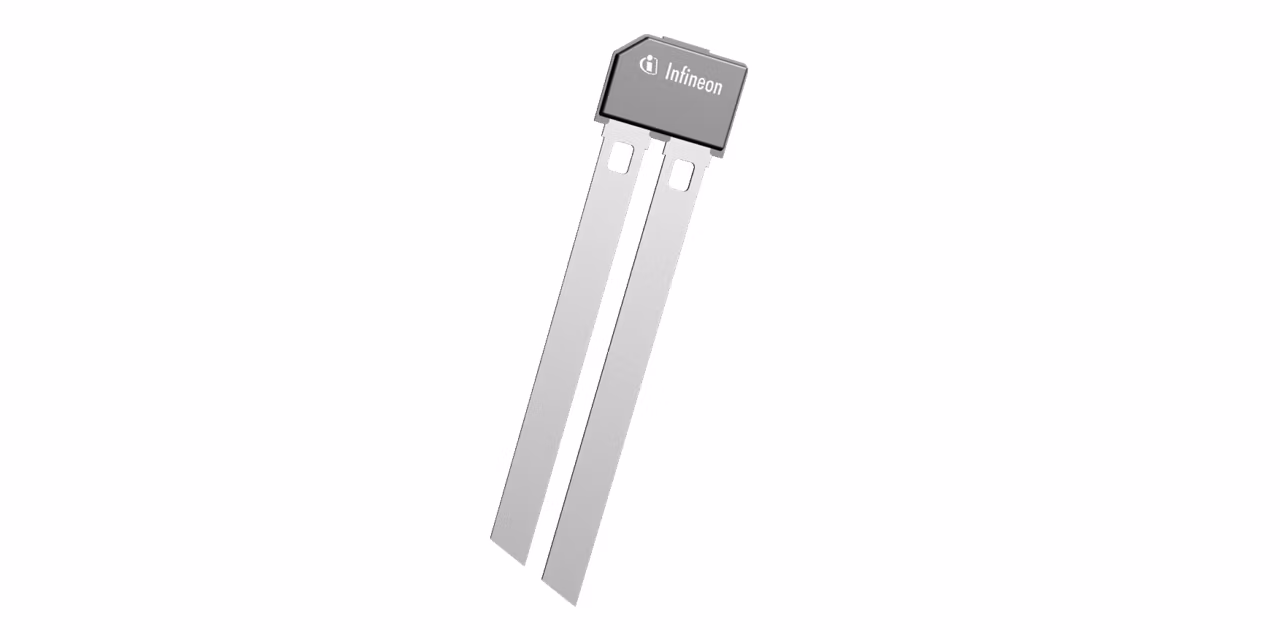

TLE5046SiC is a wheel speed sensor with direction detection designed for sophisticated vehicle control systems. The Infineon speed sensor shows best-in-class jitter performance, thus being the best choice for wheel speed applications. The rotational speed is sensed with high accuracy, enabling the sensor to be used as a component of indirect tire pressure monitoring systems (iTPMS). It is based on integrated giant magneto resistance (iGMR).

Infineon Technologies TLE5046SIC-PWM2-R050 Product Info

16 April 2026 0

Parameters

Additional Information

PWM protocol

Applications

Wheel Speed Sensor

C Package Available

No

Classification

ISO 26262-compliant

Direction Detection

Yes

Green

RoHS compliant

Interfaces

Current

Planned to be available until at least

2039

Technology

GMR

Type of Hysteresis

hidden adaptive

Features

  • Developed according to ISO 26262
  • Compliant to requirements of ASIL B(D)
  • Low jitter
  • Two-wire current interface
  • Advanced stop-start capabilities
  • No loss of direction information

Description

  • Small package saves module size
  • Availability of the sensor signal
  • Immunity against y-shift effects
  • Outstanding air gap performance
