IRFP1405
  • IRFP1405

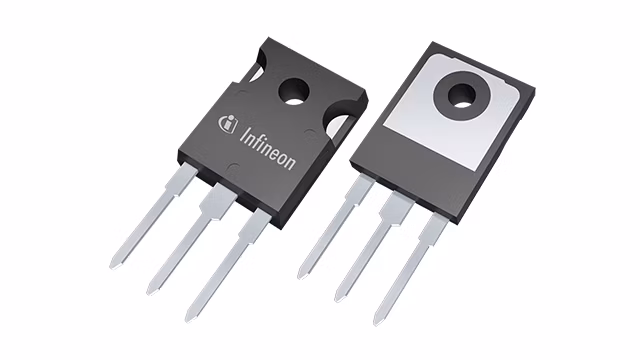

IRFP1405

The IR MOSFET family of power MOSFETs utilizes proven silicon processes offering designers a wide portfolio of devices to support various applications such as DC motors, inverters, SMPS, lighting, load switches as well as battery powered applications.The devices are available in a variety of surface mount and through-hole packages with industry standard footprints for ease of design.

Infineon Technologies IRFP1405 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

1.08

ID (@25°C) max

160 A

Mounting

THT

Operating Temperature range

-55 °C to 175 °C

Package

TO-247

Polarity

N

Ptot max

310 W

Qgd

53.3 nC

QG (typ @10V)

120 nC

RDS (on) (@10V) max

5.3 mΩ

RthJC max

0.49 K/W

Special Features

Wide SOA

Tj max

175 °C

VDS max

55 V

VGS(th) range

2 V to 4 V

VGS(th)

3 V

VGS max

20 V

Features

  • Planar cell structure for wide SOA
  • Optimized for broadest availability
  • Product qualification according to JEDEC
  • Silicon optimized for applications
  • Industry standard through-hole power
  • High current rating

Description

  • Increased ruggedness
  • Wide availability at distribution
  • Industry standard qualification level
  • High performance, low-frequency
  • Drop-in replacement with standard pinout
  • High current carrying capability
