TLE5012B E1000
  • TLE5012B E1000

TLE5012B E1000

Active and preferred

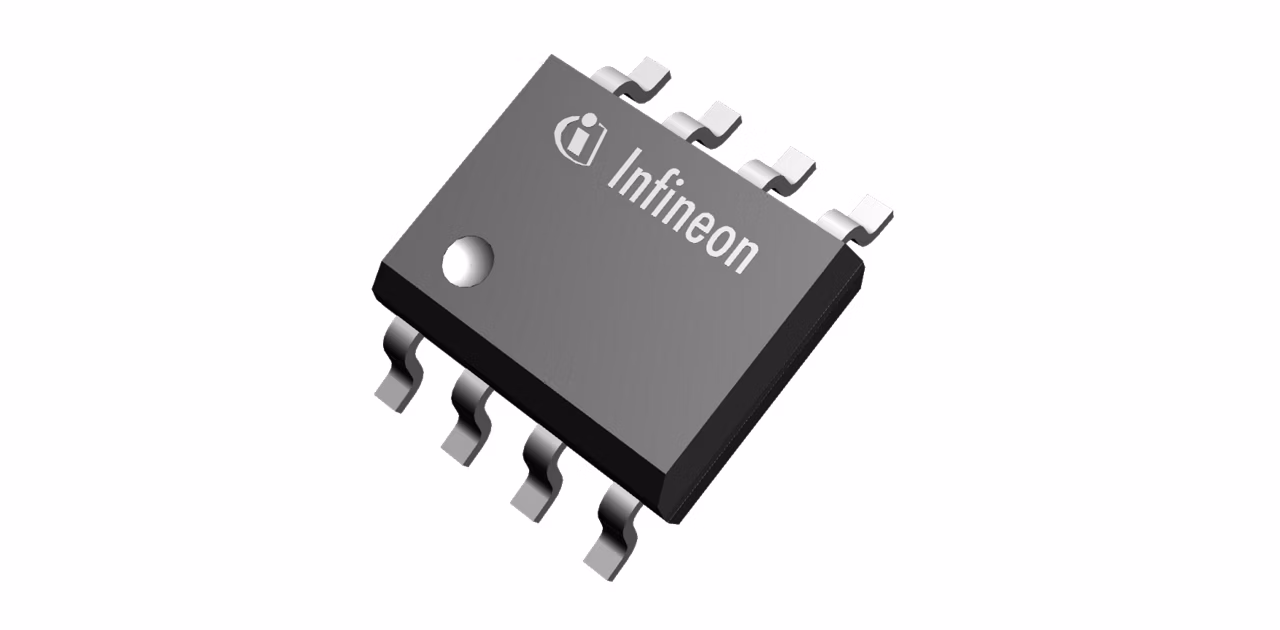

The TLE5012B is a 360° angle sensor using iGMR elements to detect magnetic field orientation. Pre-calibrated with stored parameters in laser fuses. Optional internal autocalibration for improved precision. Data communication via SSC (SPI-compatible). Other interfaces: PWM, SPC, HSM, and IIF. Pre-configured derivates with various interface settings available. Online diagnostics for reliable operation.

Infineon Technologies TLE5012B E1000 Product Info

16 April 2026 0

Parameters

Classification

ISO 26262-ready

Interfaces

SPI, IIF

ISO 26262

ready, ready

Magnetic field range

25 mT to 70 mT

Package

SMD

Planned to be available until at least

2034

Supply Voltage range

-0.5 V to 6.5 V

Supply Voltage ((V))

-0.5-6.5

Technology

GMR

Temperature range

-40 °C to 150 °C

Apps

Electric power steering (EPS), Light electric vehicle solutions, Industrial automation, General purpose motor drive, Industrial robots

Features

  • GMR principle
  • Magnetic field sense angle measurement
  • 360° measurement revolution counter
  • Highly accurate single bit SD-ADC
  • Absolute angle on O/P resolution 0.01°
  • 16 bit of sine /cosine value interface
  • Bi-directional SSC Interface 8 Mbit/s
  • Supports Safety Integrity Level (SIL)
  • Interfaces:SSC, PWM,IIF,HSM,ShortPWMCode
  • O/P pins can be configuredas push-pull
  • Bus mode operation of SSCSPC interface
