TLE4999C8-S0001
  • TLE4999C8-S0001

TLE4999C8-S0001

Active and preferred

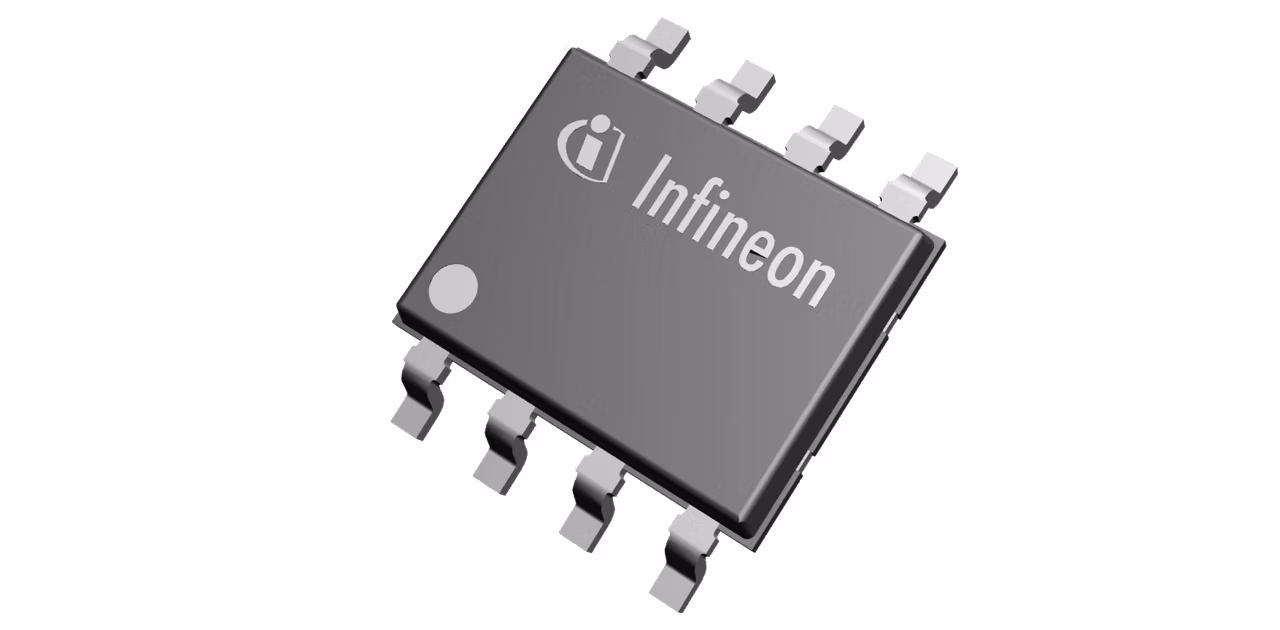

The Infineon TLE4999C8-S0001 is a dual-channel linear sensor with a bus-capable digital Short-PWM-Code interface, meeting ISO 26262 safety standards. It provides high redundancy with two sensor elements in one silicon design. Developed according to ISO 26262 (2011), supporting safety up to ASIL C, it has a magnetic sensitivity drift of 2.5%, noise main channel 1 LSB12, and sub-channel 4 LSB12.

Infineon Technologies TLE4999C8-S0001 Product Info

16 April 2026 0

Parameters

Applications

Linear Hall

Classification

ISO 26262-compliant

Interfaces

SPC

Package

SMD

Planned to be available until at least

2039

Programmable

Yes

Features

  • Measurement channels integrated on chip
  • Developed compliant to ISO 26262
  • High diagnostic coverage by plausibility
  • Digital SPC interface with min.0.5µs
  • Bus-capability for up to 4 sensor ICs
  • Selectable 12/14/16bit output signals
  • Automotive temperature range-40°Cto125°C
  • Digital temperature&stress compensation
  • Voltage protection for VDD, GND&OUT pins
  • Programmable independently in EEPROM
  • Multipoint calibration up to 9 points
  • Frameholder mechanism
