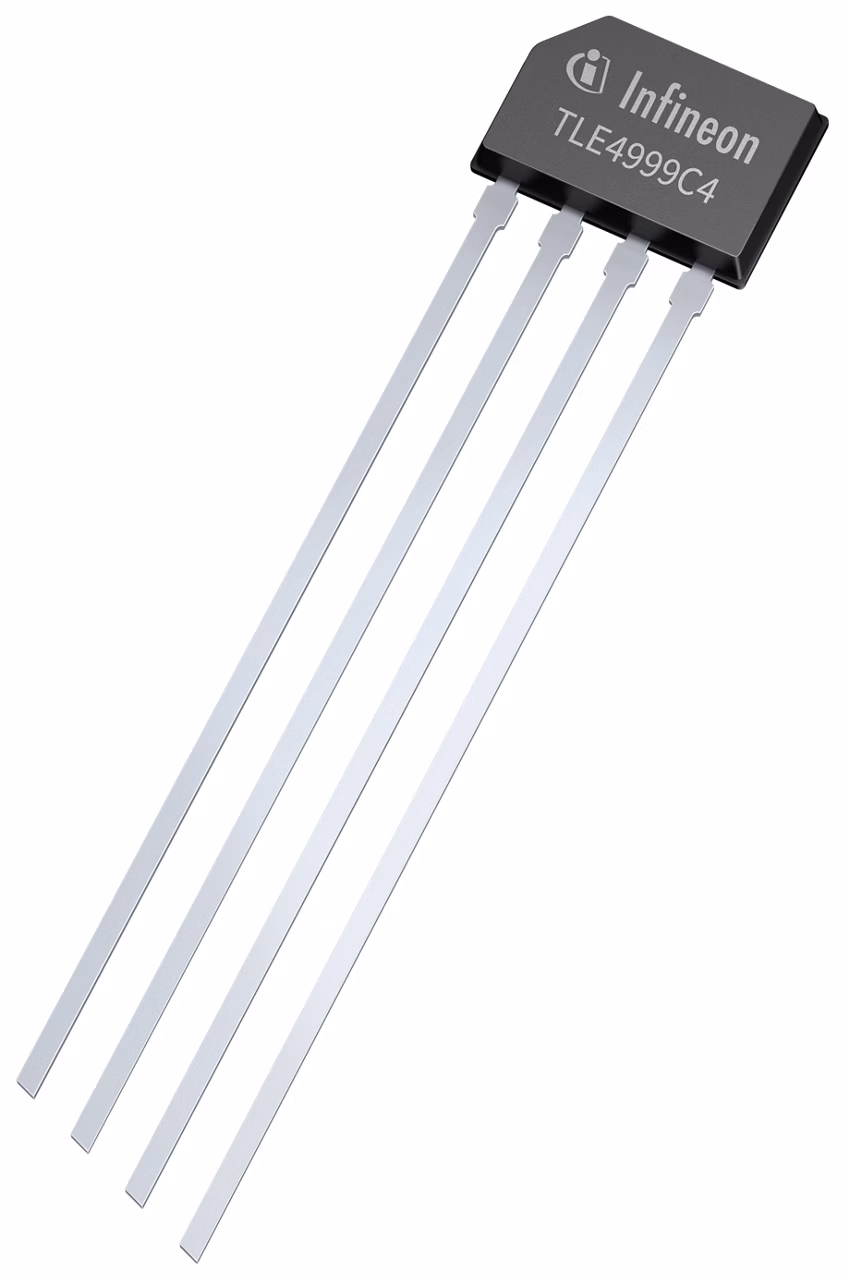

TLE4999C4
  • TLE4999C4

TLE4999C4

Active and preferred

TLE4999C4 is ISO 26262-compliant, offering high redundancy with two sensor elements on one chip. It ensures premium functional safety (up to ASIL D) with separate signal paths, plausibility checks, and diagnostic coverage. The digital SPC protocol based on SENT standard is provided on the OUT pin. Calibration via SICI after assembly, separate analog supply domains, and 4 output signal modes with CRC and a rolling counter are also supported.

Infineon Technologies TLE4999C4 Product Info

16 April 2026 0

Parameters

Applications

Linear Hall

Classification

ISO 26262-compliant

Interfaces

SPC

Package

Leaded

Planned to be available until at least

2039

Programmable

Yes

Features

  • Measurement channels integrated on chip
  • Developed compliant to ISO 26262
  • High diagnostic coverage by plausibility
  • Digital SPC interface with min.0.5µs
  • Bus-capability for up to 4 sensor Ics
  • Selectable 12/14/16bit output signals
  • Operating junction temp -40°C to 150°C
  • Digital temperature&stress compensation
  • Voltage protection for VDD, GND&OUT pins
  • Programmable independently in EEPROM
  • Multipoint calibration up to 9 points
  • Frameholder mechanism
