IM66D130A
  • IM66D130A

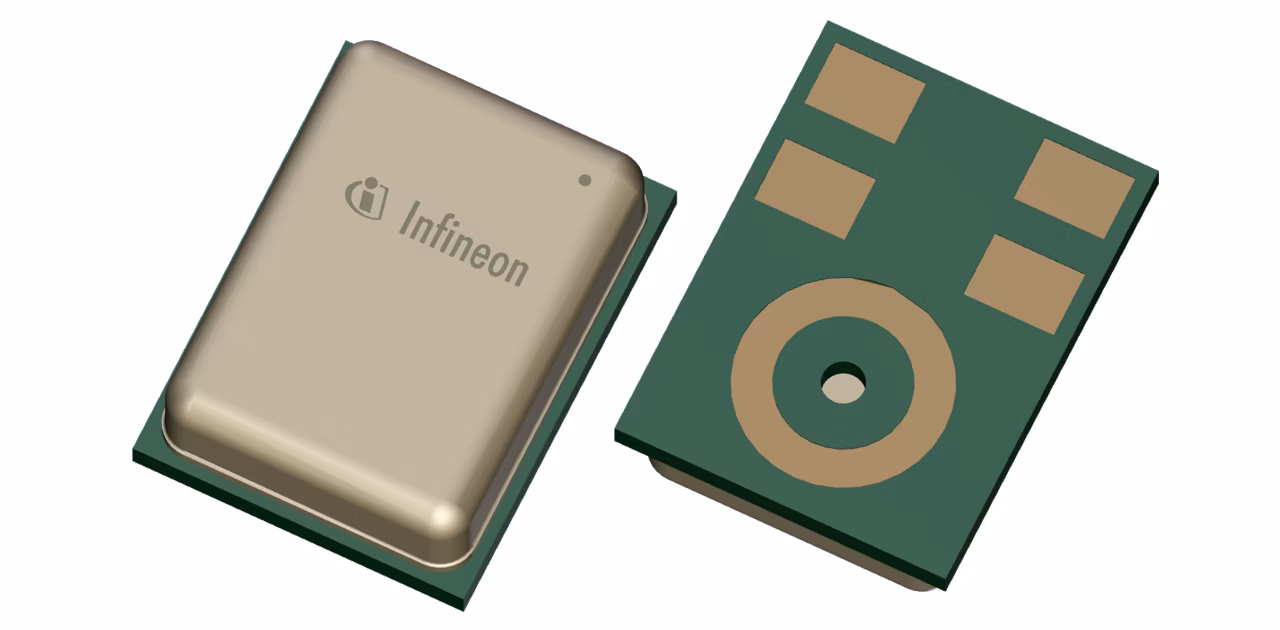

IM66D130A

Active and preferred

High-performance digital MEMS microphones qualified according to automotive quality standard AEC-Q103-003. They are suited to all applications inside and outside the car, where the best audio performance in harsh environments and a digital PDM interface is required. They also perfectly support acoustic noise cancellation applications with its flat and stable frequency and phase response and a very low LFRO (Low frequency roll-off) at 7 Hz.

Infineon Technologies IM66D130A Product Info

16 April 2026 0

Parameters

AEC-Q103-003 qualified

Yes

AOP

130 dBSPL

Classification

AEC-Q103-003

Current Consumption

1100 µA

Green

RoHS compliant, Halogen free

Interfaces

Digital PDM

LFRO

7 Hz

Package dimensions

3.50 x 2.65 x 0.98 mm³

Planned to be available until at least

2034

Sensitivity

-36 dBFS

SNR

66 dB(A)

Supply Voltage

1.62 - 3.60 V

Features

  • AEC-Q103-003
  • Temperature range TA = -40°C to +105° C
  • Flat frequ. response down to 7 Hz
  • Digital PDM output
  • High dynamic range
  • High wind-noise robustness
  • Signal to noise ratio of 66 db(A)
  • Active THD compensation
  • Small surface mount package
  • Environmental robust up to IP57

Description

  • Flat frequency response
  • Low frequency roll-off
  • Enlarged operating temperature
  • Long availability
  • Automotive qualified
  • Close sensitivity matching
  • Close phase matching
  • Clear speech up to high SPL levels
