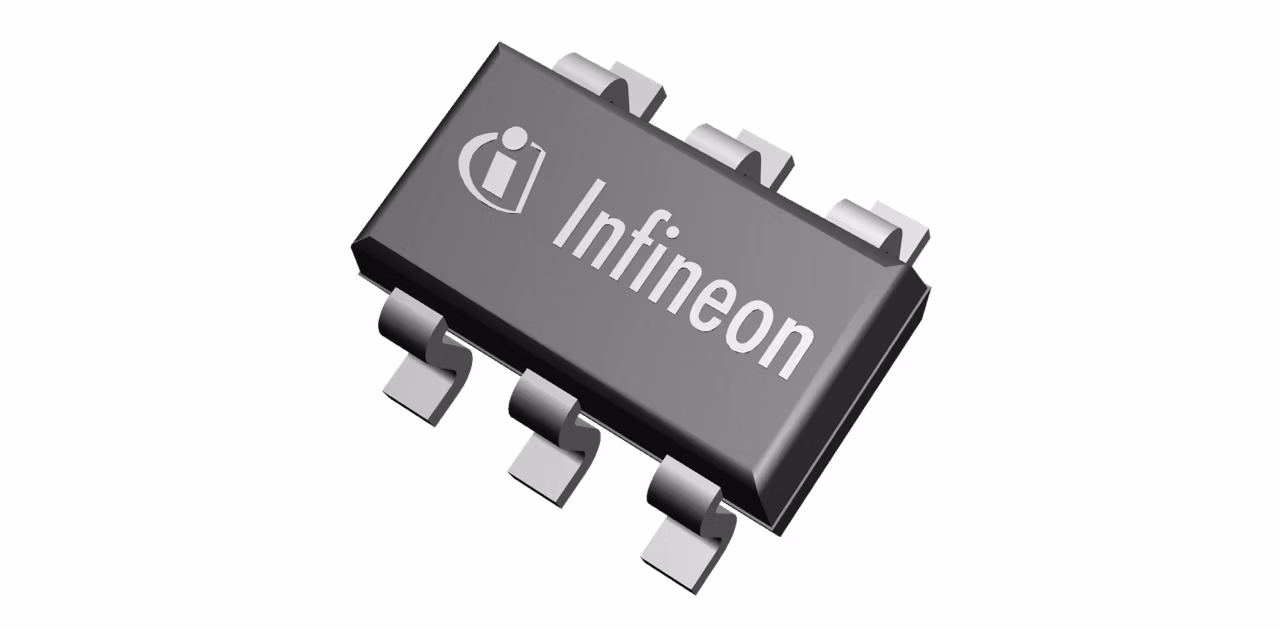

TLE4966-3K
  • TLE4966-3K

TLE4966-3K

The TLE4966-3K is an integrated dual Hall-effect sensor IC designed for highly accurate applications using a rotating pole wheel. It provides a speed output at Q2 based on the magnetic field value and calculates the direction information internally using output Q1.

Infineon Technologies TLE4966-3K Product Info

16 April 2026 0

Parameters

Bhyst

5 mT

Bop

2.5 mT

Brp

-2.5 mT

Interfaces

open collector

Language

Magnetics

Product Category

Sensors

Product Description

High precision automotive qualified dual Hall latch

Supply Voltage range

2.7 V to 24 V

Temperature range

-50 °C to 150 °C

Type

Double Hall

Features

  • 2.7V to 24V supply voltage operation
  • Operation from unregulated power supply
  • High sensitivity and high stability of the magnetic switching points
  • High resistance to mechanical stress by Active Error Compensation
  • Reverse battery protection (-18V)
  • Superior temperature stability
  • Peak temperatures up to 195°C
  • Low jitter (typ. 1μs)
  • Digital output signals
  • Excellent matching of the 2 Hall probes
  • Hall plate distance 1.45mm
  • Speed and direction output signal
  • SMD package PG-TSOP-6-6-5
