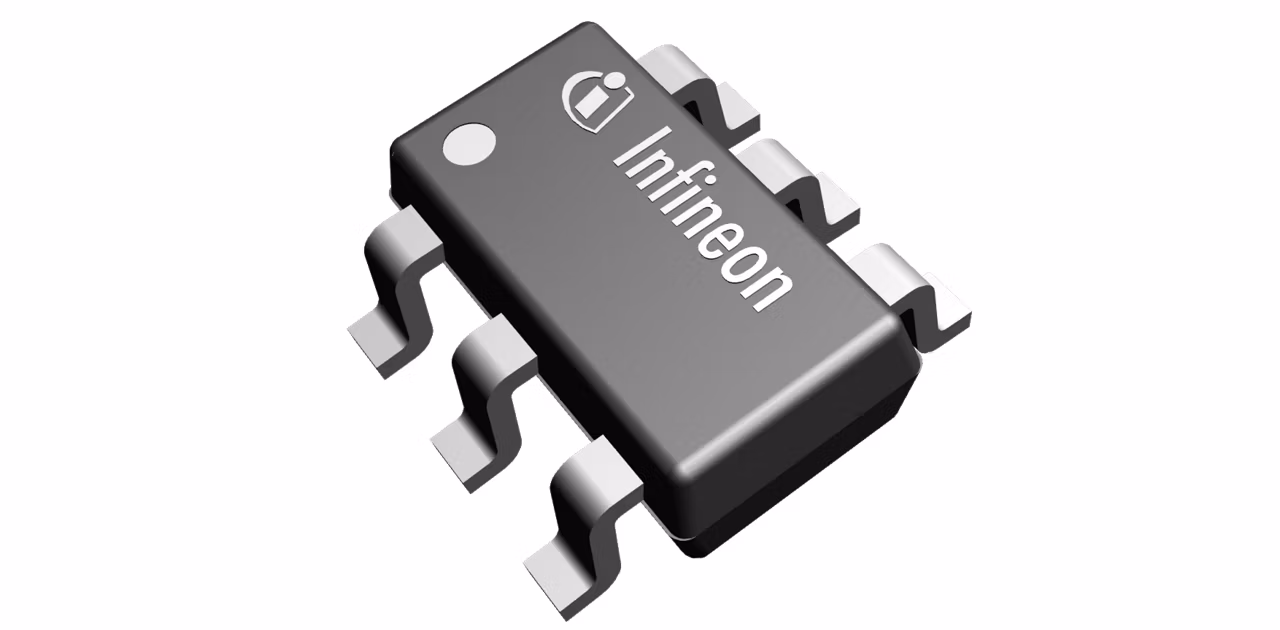

TLE4966-2G
  • TLE4966-2G

TLE4966-2G

Active and preferred

XENSIV™ TLE4966-2G is a precise dual Hall-effect sensor with chopper techniques on chip, ensuring accurate applications and high temp stability. It offers independent speed outputs at Q1 and Q2 corresponding to magnetic values at Hall elements H1 and H2. Identical thresholds for BOP and BRP (B OP1 = B OP2 and B R1 = B R2) are present. Output Q1/Q2 goes low for positive magnetic fields above BOP1/BOP2 and high for negative fields below BRP.

Infineon Technologies TLE4966-2G Product Info

16 April 2026 0

Parameters

Bhyst

15 mT

Bop

7.5 mT

Brp

-7.5 mT

Interfaces

open collector

Product Description

High precision automotive qualified dual Hall latch in a gullwing package

Supply Voltage range

2.7 V to 24 V

Temperature range

-40 °C to 150 °C

Type

Double Hall

Apps

Automotive body control module (BCM)

Features

  • 2.7V to 24V supply voltage operation
  • Operation from unregulated power supply
  • Stable, sensitive magnetic switching
  • Active Error Comp for stress resistance.
  • Reverse battery protection (-18V)
  • Superior temperature stability
  • Low jitter (typ. 1μs)
  • Digital output signals
  • Excellent matching of the 2 Hall probes
  • Hall plate distance 1.45mm
  • Two independent speed outputs
