2EDL05N06PJ
  • 2EDL05N06PJ

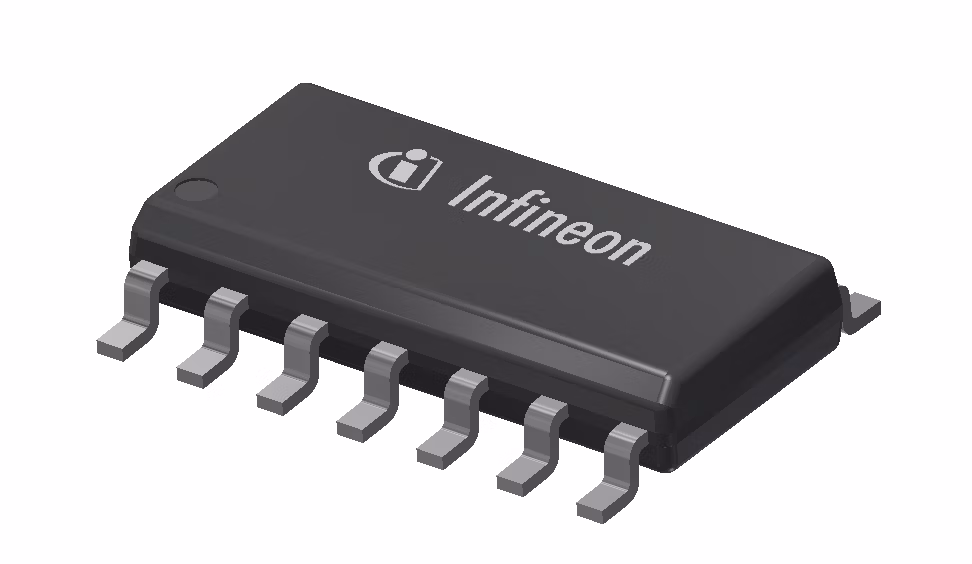

2EDL05N06PJ

Active and preferred

EiceDRIVER™ Compact - Optimized 600V half bridge gate driver IC with LS-SOI technology to control MOS-transistors

Infineon Technologies 2EDL05N06PJ Product Info

16 April 2026 0

Parameters

Channels

2

Configuration

Half-Bridge

Input Vcc range

10 V to 17.5 V

Isolation Type

Functional levelshift SOI (Silicon On Insulator)

Output Current (Sink)

0.7 A

Output Current (Source)

0.36 A

Qualification

Industrial

Turn Off Propagation Delay

300 ns

Turn On Propagation Delay

310 ns

VBS UVLO (On)

9.1 V

VBS UVLO (Off)

8.3 V

VCC UVLO (On)

9.1 V

VCC UVLO (Off)

8.3 V

Voltage Class

600 V

Apps

Power tools, Refrigerators and freezers, Motor control

Features

  • Individual control circuits
  • Undervoltage supply detect. filter
  • All inputs clamped by diodes
  • Off line gate clamping function
  • Asym. undervolt. lockout thresholds
  • Insensitivity of the bridge output
