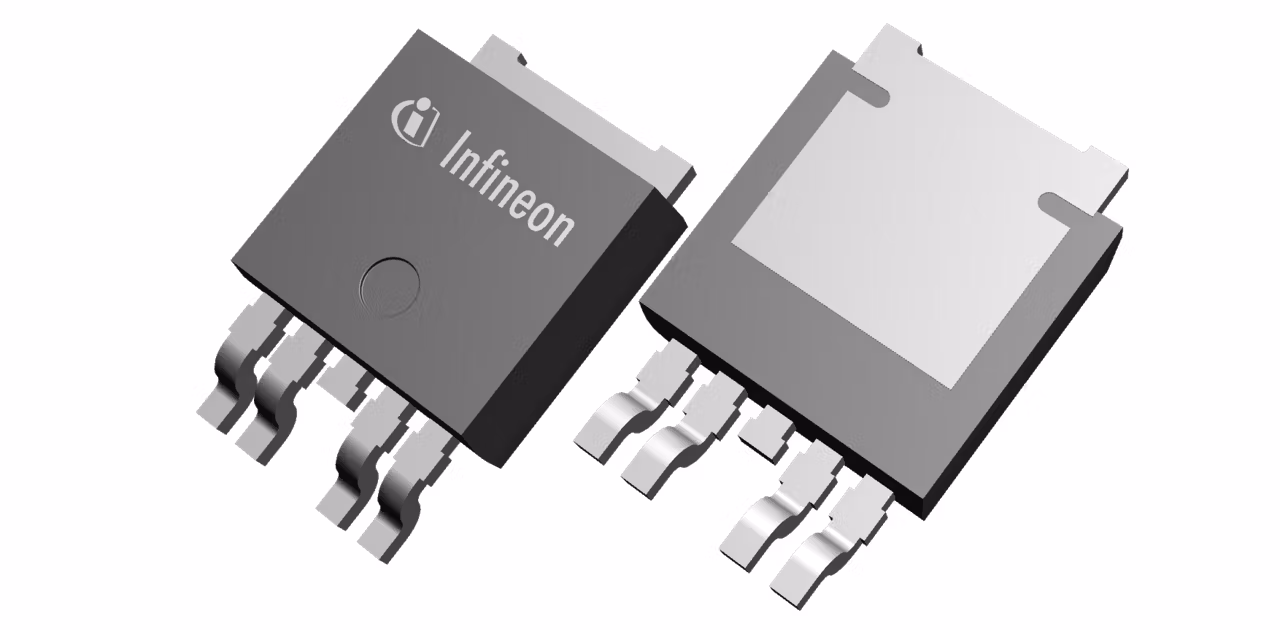

TLE4251D
  • TLE4251D

TLE4251D

Active and preferred

The TLE4251 is an automotive-grade device with protection against overload, short circuit, and reverse polarity. It tracks supply voltages up to 40 V to a reference voltage at the adjust input. The output can drive loads up to 400 mA with an accuracy of 0.5%. In stand-by mode, activated by the EN input, the IC has very low current consumption, making it ideal for low-power battery applications.

Infineon Technologies TLE4251D Product Info

16 April 2026 0

Parameters

Accuracy

0.5 %

Base Product

TLE4251xx

Dropout Voltage

280 mV

Early Warning

No

Enable (=Inhibit)

Yes

Family

OPTIREG™ linear Trackers

Hold

No

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

4 V to 40 V

Output Current max

400 mA

Output Voltage Type

Tracking

Over Voltage Protection

No

Planned to be available until at least

2038

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

230 µA

Regulator Type

Trackers

Reset

No

Status Output

No

Watchdog

No

Apps

Automotive body control module (BCM), Automotive LED lighting systems, Electric vehicle drivetrain system

Features

  • Output tracking tolerance ≤ ±0.2%
  • 400 mA output current capability
  • Enable Function
  • Very low current consumption in OFF mode
  • Wide operation range: up to 40 V
  • Temperature R: -40°C≤Tj≤150°C
  • Output protected against short circuit
  • Overtemperature protection
  • Reverse polarity proof
  • Green Product (RoHS compliant)
  • AEC Qualified

Description

  • Efficient and accurate V replication
  • Robust tracking power supply
