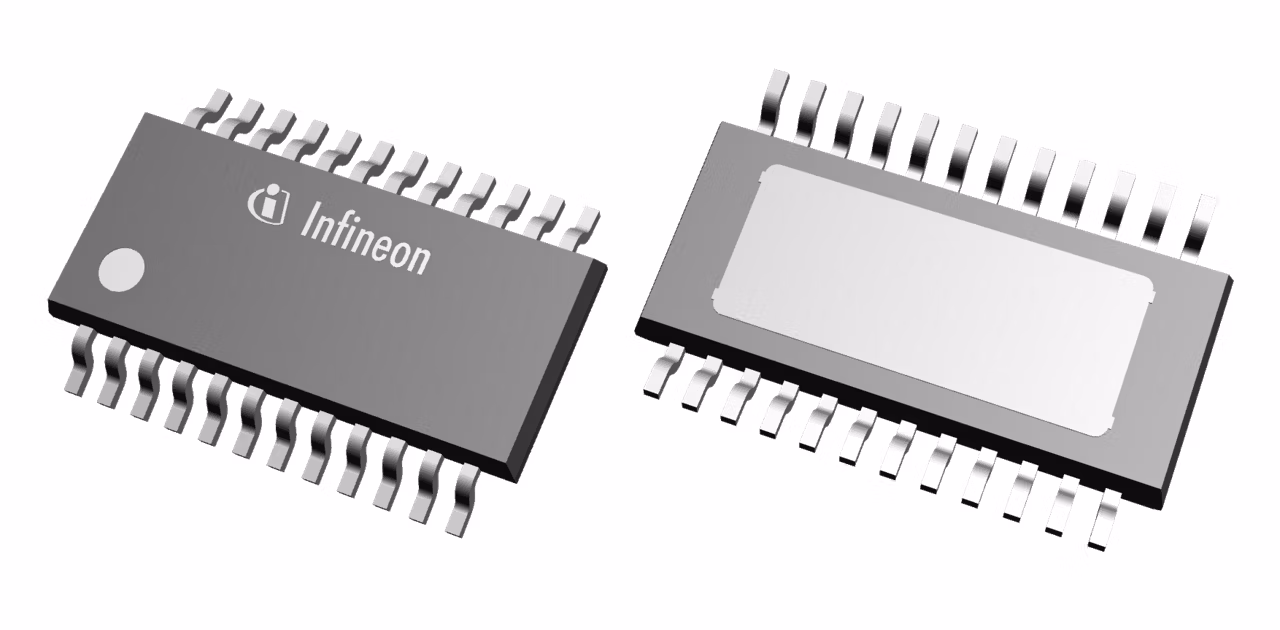

TLD6098-2ES
  • TLD6098-2ES

TLD6098-2ES

Active and preferred

The LITIX™ Power TLD6098-2ES is a dual-channel DC-DC boost controller for LED drivers. It supports various output configurations and has built-in diagnosis and protection features. The embedded spread spectrum modulator improves EMI performance. Integrated pulse width modulators reduce LED brightness with minimal color shift. Load status is continuously monitored, promptly indicating LED overcurrent, short to ground and overvoltage events.

Infineon Technologies TLD6098-2ES Product Info

16 April 2026 0

Parameters

Dimming

Analog and Digital

Family

LITIX™ Power

fSW range

100 kHz to 2200 kHz

IQ

5000 µA

Open Load Detection

Yes

Operating Temperature range

-40 °C to 150 °C

Planned to be available until at least

2039

PWM

Yes

Short Circuit Protection

Yes

Tolerance

3.5%

Topology

Multitopology DC-DC controller

Type

Multitopology

VS range

4.5 V to 60 V

Apps

Automotive LED lighting systems, Full LED headlight system - multi-channel LED driver

Features

  • Dual-channel peak current controller
  • channel configurable in Boost,Buck,SEPIC
  • n-channel switching MOSFET
  • 100kHz to 500kHz range spread spectrum
  • Synchronization 100kHz-500 kHz,2.2 MHz
  • Wide input voltage range from 4.5V-60V
  • Integrated PMOS gate drivers
  • Channels in phase opposition
  • Automotive qualified

Description

  • Reduced EMI emissions
  • Protect with highside load disconnection
  • 2.2 MHz option for small size DC-DC
