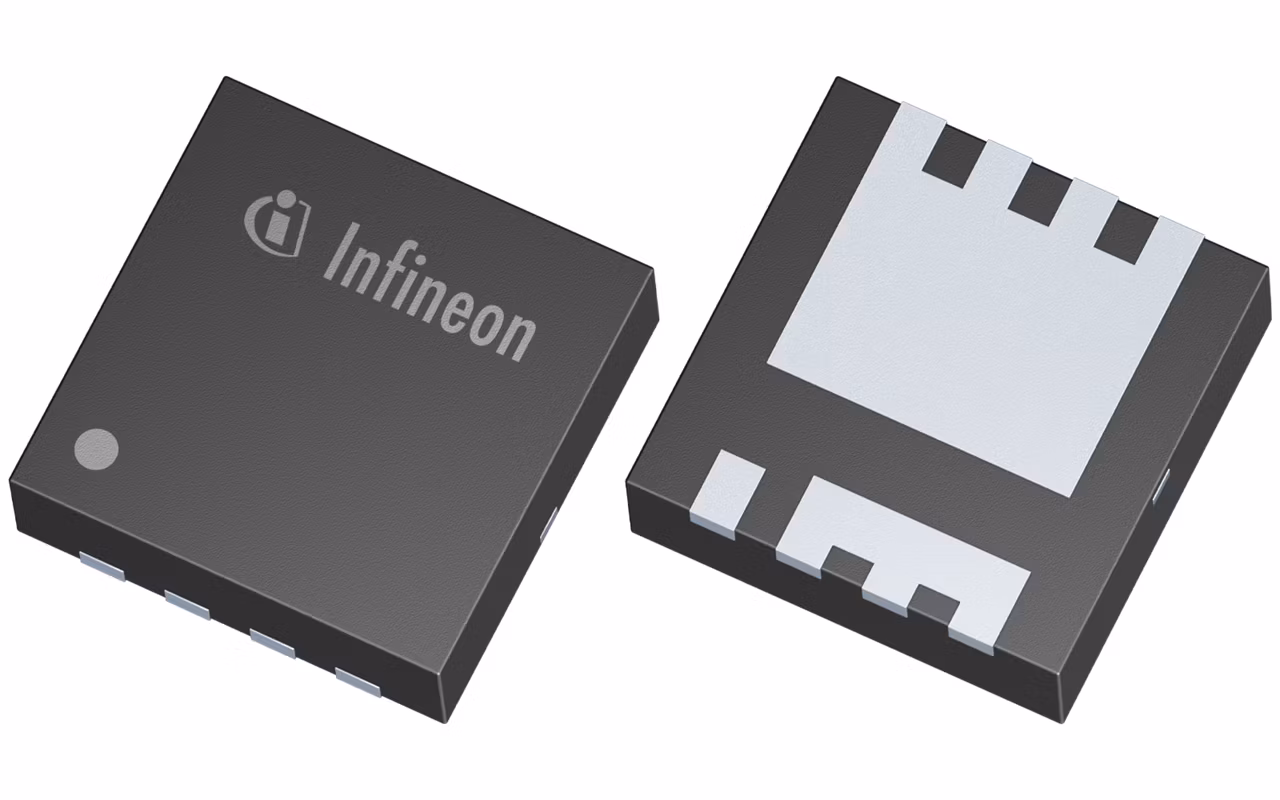

ISZ15EP15LM
  • ISZ15EP15LM

ISZ15EP15LM

Active and preferred

OptiMOS™ P-channel MOSFETs 150 V in PQFN 3.3x3.3, targeted for battery management, load switch and reverse polarity protection applications, reducing design complexity in medium and low power applications. They offer easy interface to MCU, fast switching as well as avalanche ruggedness, suitable for high quality demanding applications. It is available in logic level featuring a wide RDS(on) range and improves efficiency at low loads.

Infineon Technologies ISZ15EP15LM Product Info

16 April 2026 0

Parameters

ID (@25°C) max

-2.7 A

IDpuls max

-10.8 A

Operating Temperature range

-55 °C to 175 °C

Package

PQFN 3.3 x 3.3 FL

Polarity

P

Ptot max

26.3 W

QG (typ @4.5V)

-5.5 nC

QG (typ @10V)

-11 nC

RDS (on) (@10V) max

1500 mΩ

RDS (on) (@4.5V) max

1600 mΩ

VDS max

-150 V

VGS(th) range

-1 V to -2 V

Features

  • Available in 6 different packages
  • Wide RDS(on)range
  • Normal level & logic level availability
  • Optimized for a wide range applications
  • Availability from distribution partners

Description

  • Industry standard package
  • Ideal for high & low switching frequency
  • Avalanche ruggedness
  • Easy interface to MCU
  • Efficient at low loads,low Qf
  • Reduced design complexity
  • Energy efficiency
