65DN06B02
  • 65DN06B02

65DN06B02

Active and preferred

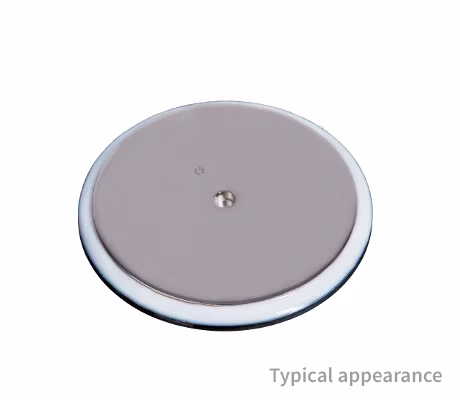

Housingless Welding Diode 600 V, 12.8 kA*/ 14.4 kA** with a diameter of 65 mm. Designed with improved losses for medium frequency resistance welding and high current rectifier applications. The low on-state voltage allows very high forward current of around 12.8 kA continuously. The 65DN06B02 is mechanically compatible to 65DN06 and very compact with a diameter of 65 mm and a height of 5 mm. *IFAV @ Tc= 100°C **IFAV @ Tc= 85°C

Infineon Technologies 65DN06B02 Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

40 to 80

Configuration

Rectifier Diodes / Welding Diodes

Housing

Disc dia 65mm height 5,0 mm

I(FSM) max

95000 A

IFAVM/TC [A/°C] (@180° el sin)

12810/100

IFAVM/Tc

12810/100 (180 ° el sin)

IFSM [A] (@10ms, Tvj max)

95000

rT [mΩ] (@Tvj max) max

0.18

RthJC [K/kW] (@180° el sin) max

4.7

Tvj [°C] max

180

VF/IF [V/kA] (@Tvj max)

0.89/8

VRRM [V]

600

VRRM max

600 V

VT0 [V] (@Tvj max) max

0.76

∫I2dt [A²s · 103] (@10ms, Tvj max)

45100

Apps

Medium voltage (MV) drive

Features

  • High forward current up to 12.8 kA
  • Low losses
  • Highest reliability
  • Best-in-class power cycling capabi.
