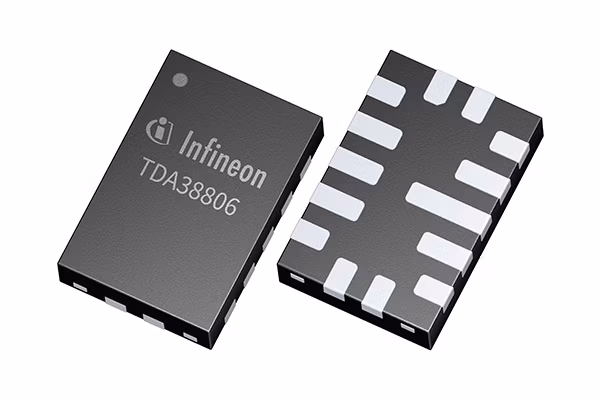

TDA38806
  • TDA38806

TDA38806

Active and preferred

TDA38806 is a 6 A fully integrated,highly efficient DC-DC buck regulator. It uses a fast constant on-time (COT) control scheme, which simplifies design and achieves fast transient response while maintaining excellent line and load regulation. Operating over a wide range of input voltages, it is suitable for use in a broad range of applications. TDA38806 provides internal compensation, simplifying the tuning and reducing the overall design effort.

Infineon Technologies TDA38806 Product Info

16 April 2026 0

Parameters

Accuracy

0.5 %

Additional Information

Vref = 0.6 V +/- 0.5%

Design Tool

Tina Model

Early Warning

No

Family

Analog DC-DC voltage regulator

Features

No, No, No, No

Industrial 24V Input

No

Input Voltage range

2.7 V to 16 V

Internal Bias LDO

Yes

Iout max

6 A

Moisture Sensitivity Level

MSL2

Number of Outputs

1

Operating Temperature range

-40 °C to 125 °C

Output Voltage range

0.6 V to 7 V

Over Voltage Protection

Yes

Package

PG-TSNP-14

Product Category

Analog POL

Qualification

Industrial

Regulator Type

Single Output

Reset

No

Simulator

Tina Model

Status Output

Yes

Switching Frequency range

600 kHz to 2000 kHz

Technology

FAST constant on-time

Topology

Buck

Type

Single phase

Watchdog

No

Apps

Data center power solutions, Medium voltage IBC (48 V), Industrial PC

Features

  • Wide input voltage range (2.7 - 16 V)
  • No external compensation
  • Supports both FCCM and DEM mode
  • Programmable Fsw
  • Soft start
  • OCP limit
  • Enhanced protection features

Description

  • Support diverse end applications
  • Compact design
  • No external components
  • Efficiency at light/full load
  • Robust design and reliability
