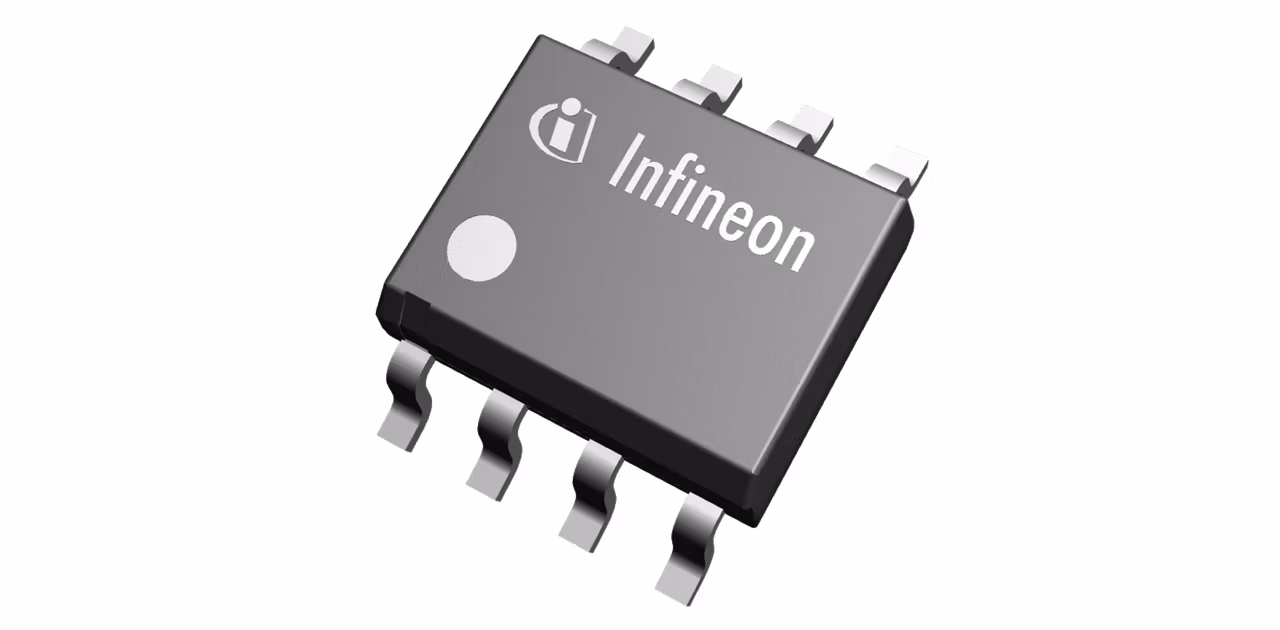

TLE8250VSJ

Infineon Technologies TLE8250VSJ Product Info

16 April 2026 0

Additional Features	NEN; Vio
Base Product	TLE825x
Bus Wake-Up Capability	No
Family	CAN FD 2MBit/s
Features	NEN, Vio
Planned to be available until at least	n.a
Product Category	Transceivers
Qualification	Automotive
Quiescent Current	< 13 µA at 5 V standby (Vcc+Vio)
Standards	ISO11898-2
Supply Voltage	5V, 5 V, 3.3 V, 3.3V
Transmission Rate max	2 MBit/s
Type	CAN, CAN FD
Wake-up Inputs	None

Compliant to ISO11898-2: 2003
Wide common mode range for electromagnetic immunity (EMI)
Very low electromagnetic emission (EME)
Excellent ESD robustness
Guaranteed and improved loop delay symmetry to support CAN FD data frames up to 2 MBit/s for Japanese OEMs
V _IO input for voltage adaption to the microcontroller supply
Extended supply range on V _CC and V _IO supply
CAN short circuit proof to ground, battery and V _CC
TxD time-out function
Low CAN bus leakage current in power-down state
Overtemperature protection
Protected against automotive transients
Power-save mode
Transmitter supply V _CC can be turned off in power-save mode
Green Product (RoHS compliant)
AEC Qualified
Certified according to latest VeLIO (Vehicle LAN Interoperability & Optimization) test requirements for the Japanese market
