T420N16TOF
  • T420N16TOF

T420N16TOF

Active and preferred

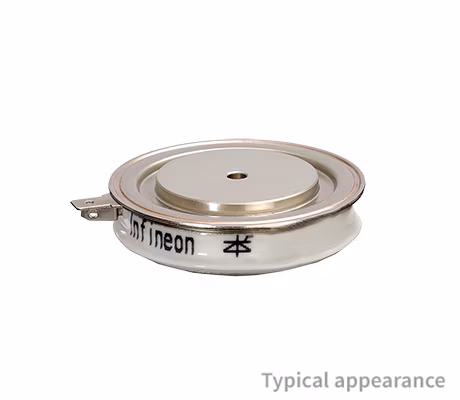

The T420N Phase Control Thyristor discs are assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 48mm and a height of 14mm.

Infineon Technologies T420N16TOF Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

5 to 10

Configuration

Electrical Triggered Phase Control Thyristor

Housing

Disc dia 48mm height 14mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

424/85

ITAVM

424 (180 ° el sin)

ITSM [A] (@10ms, Tvj max)

6400

ITSM

6400 A

rT [mΩ] (@Tvj max) max

0.75

RthJC [K/kW] (@180° el sin) max

56

tq [µs]

220

Tvj [°C] max

125

VDRM / VRRM [V]

1600

VDRM/ VRRM (V)

1600 V

VT/IT [V/kA] (@Tvj max)

2.10/1.5

VT0 [V] (@Tvj max) max

0.9

∫I2dt [A²s · 103] (@10ms, Tvj max)

205

Apps

Wind power, Motor control, Power conversion

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • High turn-on di/dt capability
  • High dv/dt capability
