T2351N52TOH
  • T2351N52TOH

T2351N52TOH

Active and preferred

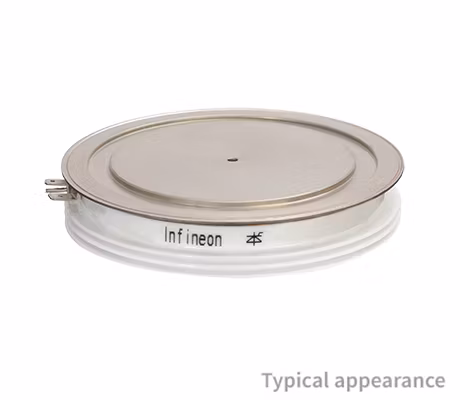

The T2351N Phase Control Thyristor discs are assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 120mm and a height of 26mm.

Infineon Technologies T2351N52TOH Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

45 to 65

Configuration

Electrical Triggered Phase Control Thyristor

Housing

Disc dia 120mm height 26mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

2250/85

ITAVM

2250 (180 ° el sin)

ITSM [A] (@10ms, Tvj max)

54000

ITSM

54000 A

rT [mΩ] (@Tvj max) max

0.36

RthJC [K/kW] (@180° el sin) max

6.5

tq [µs]

450

Tvj [°C] max

125

VDRM / VRRM [V]

5200

VDRM/ VRRM (V)

5200 V

VT/IT [V/kA] (@Tvj max)

1.85/3.0

VT0 [V] (@Tvj max) max

0.81

∫I2dt [A²s · 103] (@10ms, Tvj max)

14600

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • High turn-on di/dt capability
  • High dv/dt capability
