T1401N42TOH
  • T1401N42TOH

T1401N42TOH

Active and preferred

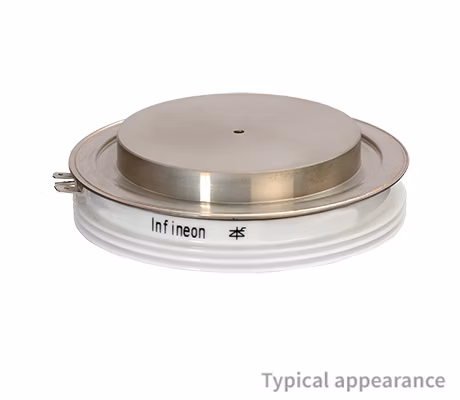

The T1401N Phase Control Thyristor discs are assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 120mm and a height of 35mm.

Infineon Technologies T1401N42TOH Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

36 to 52

Configuration

Electrical Triggered Phase Control Thyristor

Housing

Disc dia 120mm height 35mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

1590/85

ITAVM

1550 (180 ° el sin)

ITSM [A] (@10ms, Tvj max)

36000

ITSM

36000 A

rT [mΩ] (@Tvj max) max

0.33

RthJC [K/kW] (@180° el sin) max

9.7

tq [µs]

350

Tvj [°C] max

125

VDRM / VRRM [V]

4200

VDRM/ VRRM (V)

4200 V

VT/IT [V/kA] (@Tvj max)

1.95/2.0

VT0 [V] (@Tvj max) max

1.29

∫I2dt [A²s · 103] (@10ms, Tvj max)

6480

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • High turn-on di/dt capability
  • High dv/dt capability
