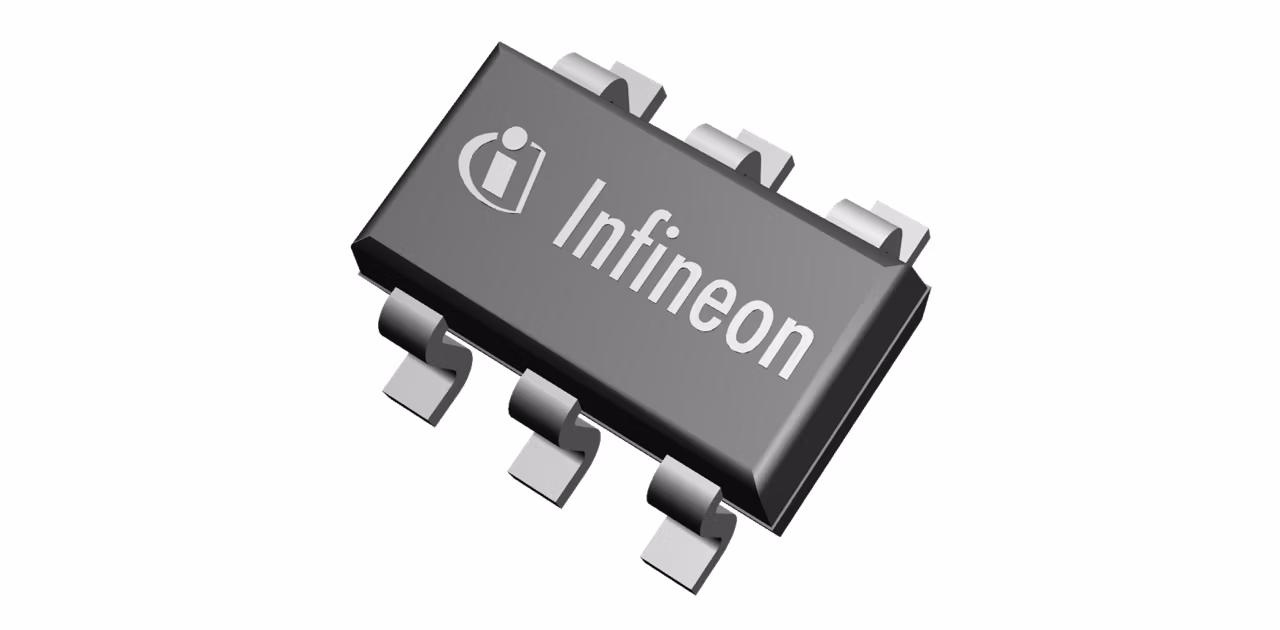

BSL215C

Active and preferred

Complementary power MOSFETs - an n-channel and a p-channel power MOSFET within the same package - are part of Infineon’s famous low voltage OptiMOS™ families, the market leader in high efficiency solutions for power generation (e.g. solar micro inverter), power supply (e.g. server and telecom) and power consumption (e.g. electric vehicle).

Infineon Technologies BSL215C Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k	0.15
Ciss	270 pF, 110 pF
Coss	46 pF, 110 pF
ID (@25°C) max	1.5 A
IDpuls max	-6 A, 6 A
Mode	Enhancement
Mounting	SMD
Operating Temperature range	-55 °C to 150 °C
Package	TSOP-6
Pin Count	6 Pins
Polarity	N+P
Ptot max	0.5 W
QG (typ @4.5V) max	3 nC
RDS (on) (@2.5V) max	280 mΩ, 250 mΩ
RDS (on) (@4.5V LL) max	150 mΩ, 140 mΩ
RDS (on) (@4.5V) max	150 mΩ, 140 mΩ
Special Features	Complimentary
VDS max	20 V, -20 V
VGS(th)	0.95 V, -0.9 V
VGS(th) range	0.7 V to 1.2 V, -1.2 V to -0.6 V

Apps

Automotive body electronics & power distribution, Electric power steering (EPS), Automotive battery management system (BMS) - high-voltage, EV traction inverter, On-board charging (OBC)

Features

Complementary P + N channel
Enhancement mode
Avalanche rated
Qualified according to AEC Q101
100% lead-free; RoHS compliant
