T1190N18TOF VT
  • T1190N18TOF VT

T1190N18TOF VT

Active and preferred

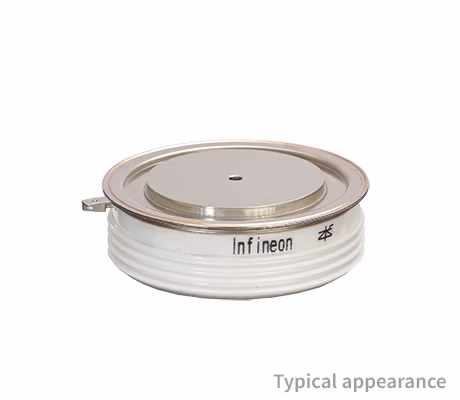

The T1190N Phase Control Thyristor discs are assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 75mm and a height of 26mm.

Infineon Technologies T1190N18TOF VT Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

16 to 32

Configuration

Electrical Triggered Phase Control Thyristor

Housing

Disc dia 75mm height 26mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

1190/85

ITAVM

1190 (180 ° el sin)

ITSM [A] (@10ms, Tvj max)

22500

ITSM

22500 A

rT [mΩ] (@Tvj max) max

0.19

RthJC [K/kW] (@180° el sin) max

23

tq [µs]

240

Tvj [°C] max

125

VDRM / VRRM [V]

1800

VDRM/ VRRM (V)

1800 V

VT/IT [V/kA] (@Tvj max)

2.05/5.4

VT0 [V] (@Tvj max) max

0.9

∫I2dt [A²s · 103] (@10ms, Tvj max)

2530

Apps

Uninterruptible power supplies (UPS)

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • High turn-on di/dt capability
  • High dv/dt capability
