S28HS01GTGZBHA030
  • S28HS01GTGZBHA030

S28HS01GTGZBHA030

Active and preferred

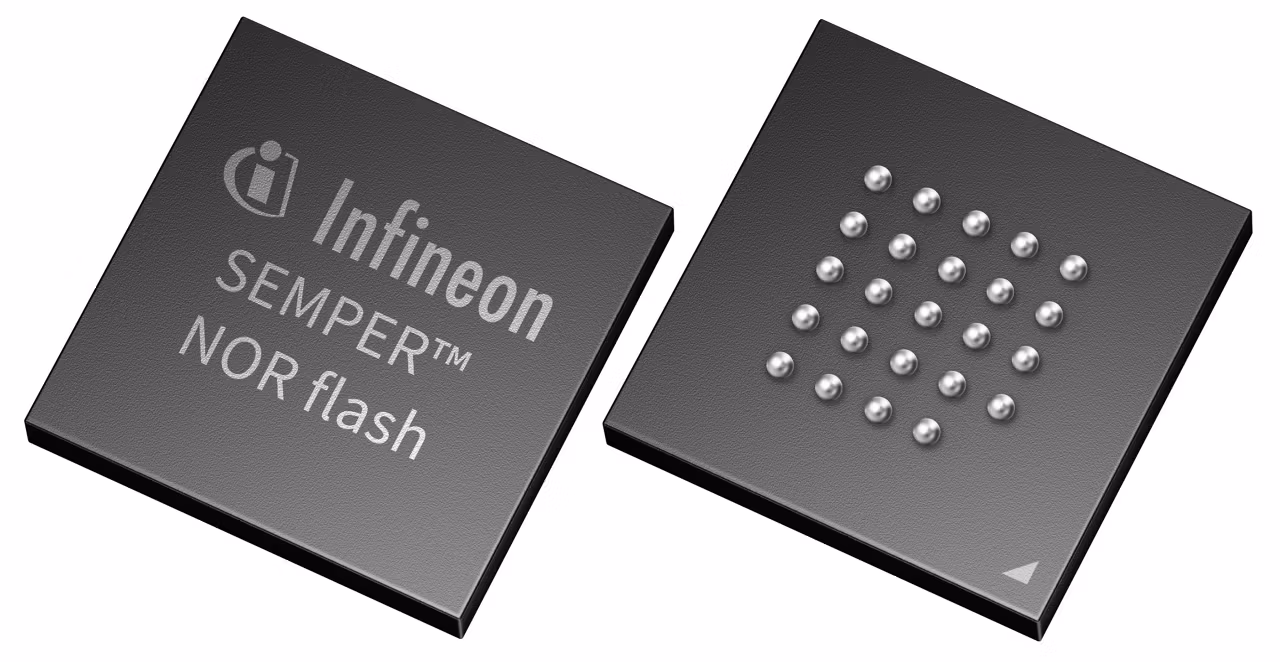

The S28HS01GTGZBHA030 is a 1 Gb automotive-grade SEMPER™ NOR flash with octal interface, supporting SDR (166 MHz) and DDR (200 MHz) modes for up to 400 MBps read speeds. Built on Infineon's 45-nm MIRRORBIT™ technology, it offers up to 2,560,000 program-erase cycles and minimum 25-year data retention. Safety features include ISO26262 ASIL B compliance. Designed for automotive and industrial applications requiring robust data integrity and high-speed access.

Infineon Technologies S28HS01GTGZBHA030 Product Info

16 April 2026 0

Parameters

Classification

ISO 26262-compliant

Density

1 GBit

Family

HS-T

Interface Bandwidth

400 MByte/s

Interface Frequency (SDR/DDR) (MHz)

166 / 200

Interfaces

Octal

Lead Ball Finish

Sn/Ag/Cu

Operating Temperature range

-40 °C to 85 °C

Operating Voltage range

1.7 V to 2 V

Operating Voltage

1.8 V

Peak Reflow Temp

260 °C

Planned to be available until at least

2037

Publish in NPSG

N

Publish in PSG

N

Qualification

Automotive

Features

  • 45-nm MIRRORBIT™ stores 2 bits/cell
  • Uniform and hybrid sector architectures
  • 256/512-byte page programming buffer
  • 1024-byte OTP secure silicon array
  • Octal interface, JEDEC JESD251 compliant
  • SDR up to 200 MBps, DDR up to 400 MBps
  • Data strobe (DS) for high-speed read
  • Functional safety ISO26262 ASIL B/D ready
  • Endurance Flex wear leveling architecture
  • Interface and data integrity CRC
  • Built-in ECC: corrects 1-bit, detects 2-bit
  • Legacy and advanced sector protection

Description

  • High density with 2 bits/cell saves board
  • Flexible sectoring for varied application
  • Large buffer boosts programming efficiency
  • OTP array enables secure key storage
  • Octal interface delivers fast data transfer
  • High-speed SDR/DDR supports demanding systems
  • DS simplifies high-speed system design
  • Functional safety for automotive/industrial
  • Wear leveling extends flash lifetime
  • CRC ensures reliable data transfer
  • ECC enhances data reliability and safety
  • Multi-level protection guards data and config
