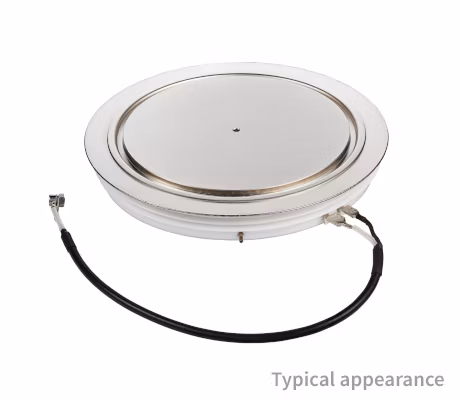

P3000ZL45X168

Active and preferred

The Press Pack IGBT offers 3000 A without internal freewheeling diode using Infineon Trench 4.5 kV IGBT chips.

Infineon Technologies P3000ZL45X168 Product Info

16 April 2026 0

Parameters

Configuration	IGBT
Housing	Disc dia 168mm high 26mm / Ceramic
IC(nom) / IF(nom)	3000 A
Qualification	Industrial
Technology	Press Pack
VCE(sat) (Tvj=25°C typ)	2.25 V
VCES	4500 V

Apps

Medium voltage IBC (48 V), Solid-state circuit breaker (SSCB), Industrial motor drives and controls, Power transmission and distribution, Flexible AC transmission systems (FACTS), High-voltage direct current (HVDC), Traction, Wind power

Features

Behavior in case of a failure
Hermetically sealed housing
Cooling of the device
Stack Design
