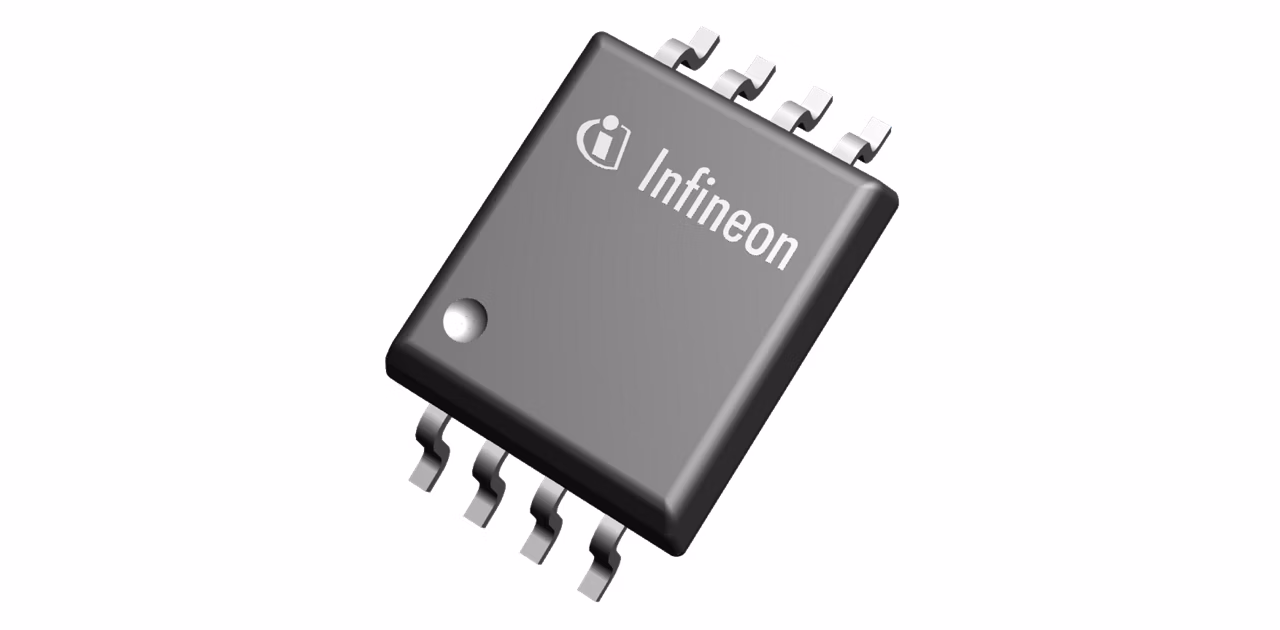

ISSI20R02H
  • ISSI20R02H

ISSI20R02H

Active and preferred

This solid-state isolator provides powerful energy transmission over a galvanic isolation barrier. No dedicated voltage supply required on the output stage. Input to output direct drive is accomplished via the Coreless Transformer technology. This device features over-current or over-temperature and Miller clamping protections, to easily and safely build protected solid-state relays.

Infineon Technologies ISSI20R02H Product Info

16 April 2026 0

Parameters

Control Current

16 mA

Isolation Type

Galvanic Isolation – Reinforced

Output Voltage

15 V

Outputs

1

Product Category

Solid State Isolators

Short Circuit Current min

0.175 mA

Technology

Coreless transformer

Type

standard turn-on

Apps

Industrial automation, Programmable logic controller (PLC), Power transmission and distribution, Robotics, Home and building automation, Battery management systems (BMS), Power conversion

Features

  • Coreless Transformer Technology
  • Energy transfer across isolation barrier
  • Drives benchmark Infineon MOSFETs
  • Temperature or current protection input
  • 0.175 mA turn-on and 160 mA turn-off
  • Dynamic Miller Clamping
  • Wide-body package (PG-DSO-8 300mil)
  • High creepage and clearance
  • Reinforced isolation

Description

  • No isolated bias supply required
  • Galvanic Isolation up to 5.7 kV rms
  • Minimizes the need for heatsinks
  • Widest range of controllable switches
  • Large application platforms
  • Eliminates spurious switch turn on
  • Meets UL 1577 and IEC 60747-17
