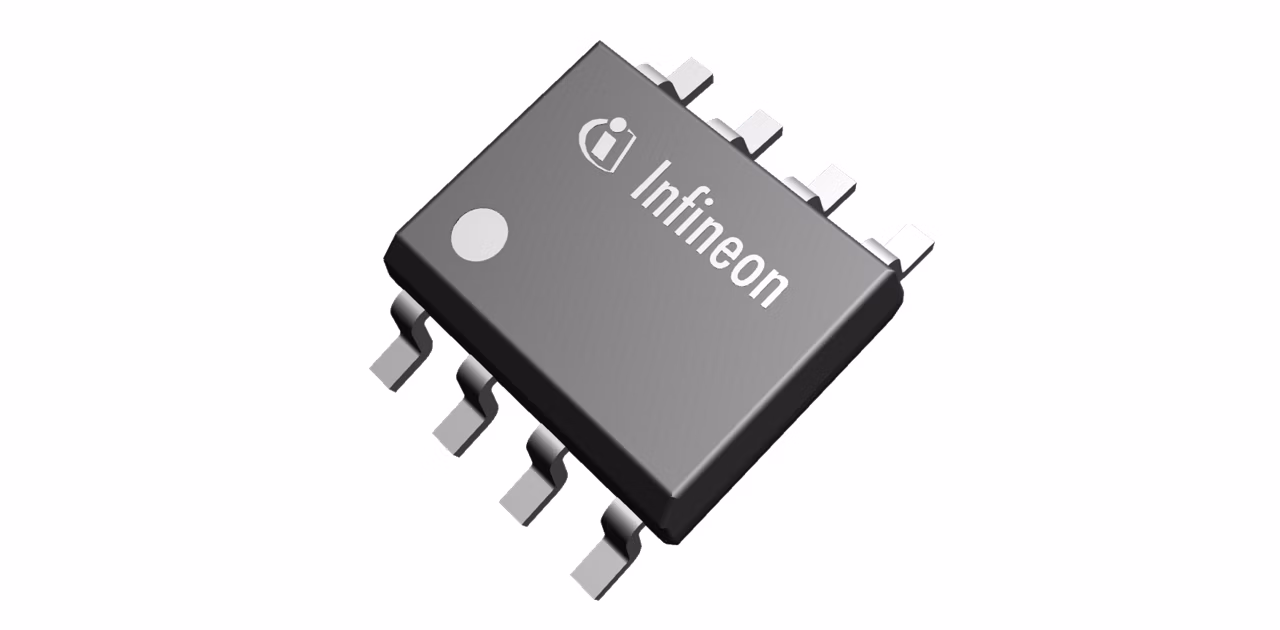

ISSI20B11F
  • ISSI20B11F

ISSI20B11F

Active and preferred

This solid-state isolator provides powerful energy transmission over a 3 kV rms galvanic isolation barrier. No dedicated voltage supply required on the output stage. Input to output buffered drive enables fast turn-on/off for safe switches SOA operation. This device features over-current or over-temperature protection, to easily and safely build protected solid-state relays.

Infineon Technologies ISSI20B11F Product Info

16 April 2026 0

Parameters

Certifications

UL1577

Family

Solid State Isolators

Fast turn-on saturation current

400 mA

Features

OTP (PTC) or OCP, fast turn-off, latch-off on fault

Input Voltage typ

3.3

Input Voltage range

2.85 V to 3.5 V, 2.85 V to 3.5 V

Input Voltage

3.3 V

Iout max

400 mA

Isolation Type

Galvanic Isolation – Functional

Moisture Sensitivity Level

3

Number of Outputs

1

Operating Temperature

125 °C

Output Voltage Type

15

Output Voltage range

10 V to 20 V

Output Voltage

15 V

Outputs

1

Package

PG-DSO-8-72

Product Category

Galvanic Isolation – Functional

Qualification

Industrial

Short Circuit Current

400 mA

Simulator

PSPICE

Switch Type

IGBT, SiC MOSFET, MOSFET

Technology

Coreless transformer

Type

Fast turn-on

Voltage Class

3000 V

Apps

Industrial automation, Programmable logic controller (PLC), Power transmission and distribution, Robotics, Home and building automation, Battery management systems (BMS), Power conversion

Features

  • Coreless Transformer Technology
  • Energy transfer across isolation barrier
  • Drives benchmark Infineon MOSFETs
  • Temperature or current protection input
  • 400 mA turn-on and 160 mA turn-off
  • PG-DSO-8 package (PG-DSO-8 150mil)

Description

  • No isolated bias supply required
  • Galvanic Isolation up to 3 kV rms
  • Minimizes the need for heatsinks
  • Widest range of controllable switches
  • Large application platforms
  • Eliminates spurious switch turn on
  • Meets UL 1577
