IRS20752L
  • IRS20752L

IRS20752L

Active and preferred

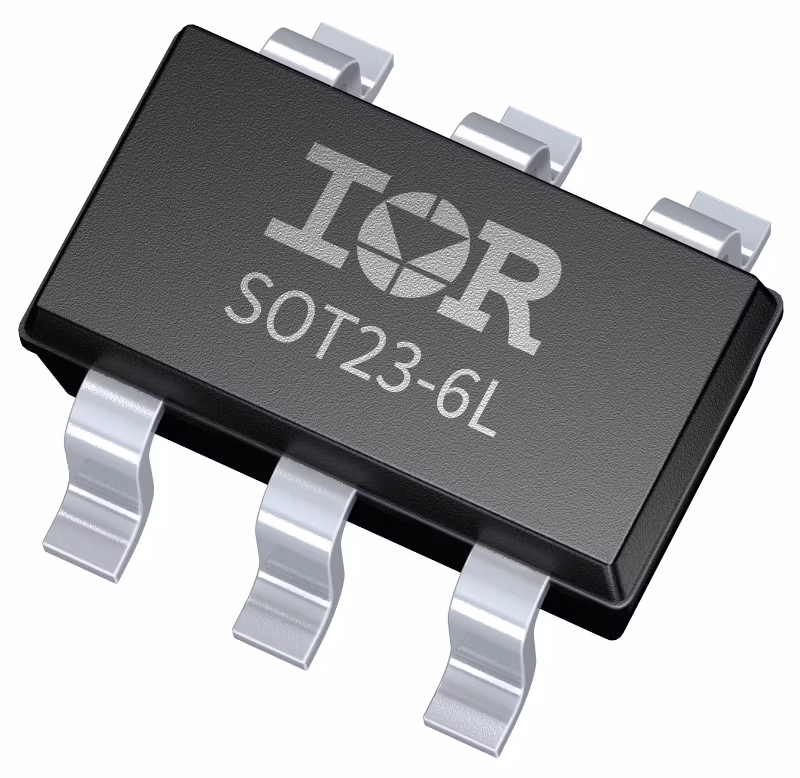

EiceDRIVER™ 200 V high side gate driver IC with typical 0.16 A source and 0.24 A sink currents in 6 Lead SOT23 package for IGBTs and MOSFETs .

Infineon Technologies IRS20752L Product Info

16 April 2026 0

Parameters

Channels

1

Configuration

High-side

Input Vcc range

10 V to 18 V

Isolation Type

Functional levelshift JI (Junction Isolated)

Output Current (Source)

0.16 A

Output Current (Sink)

0.24 A

Qualification

Industrial

Turn Off Propagation Delay

215 ns

Turn On Propagation Delay

140 ns

VBS UVLO (Off)

8 V

VBS UVLO (On)

9 V

VCC UVLO (Off)

8 V

VCC UVLO (On)

9 V

Voltage Class

200 V

Apps

Vacuum cleaners

Features

  • Floating driver for bootstrap op.
  • Fully operational to +200 V
  • Operational to +600 V (IRS25752L)
  • Operational to +100 V (IRS10752L )
  • Excellent dv/dt immunity
  • Excell. negative vs trans. immunity
  • Wide Vcc range
  • UVLO on low-side and high-side
  • Schmitt-trigger input
  • Output in phase with input
