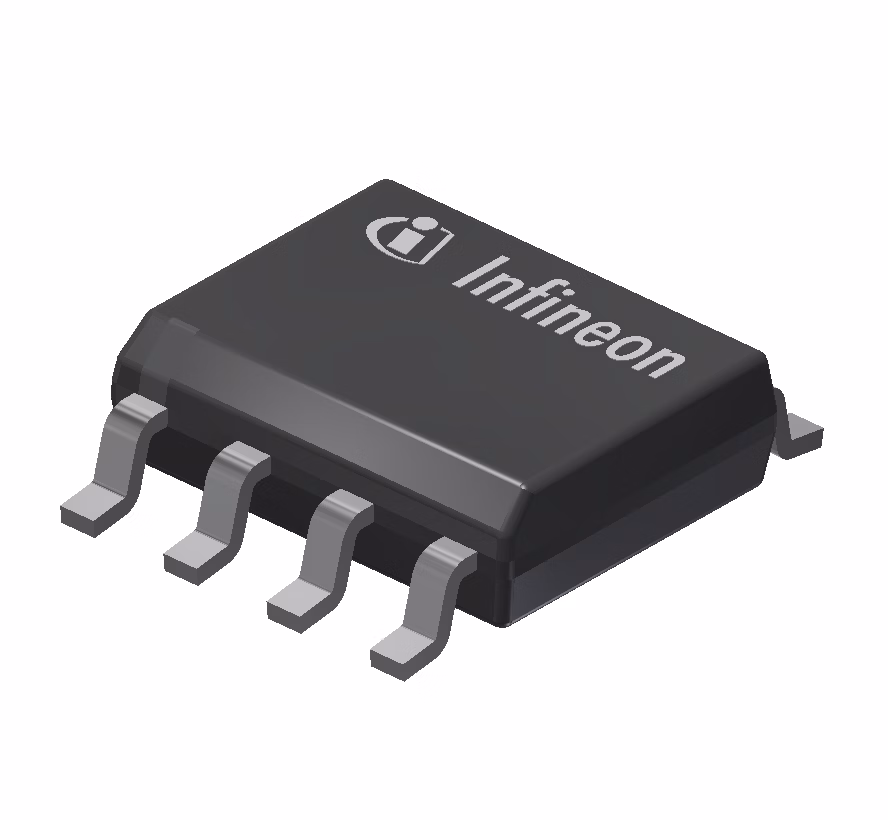

TLE9250XSJ
  • TLE9250XSJ

TLE9250XSJ

The TLE9250XSJ meets ISO11898 and upcoming 2016 standards, SAE J1939, J2284-4/5. Offered in PG-DSO-8 and leadless PG-TSON-8 (TLE9250XLE) packages, it provides high ESD robustness, low EME, stringent EMC compliance, CAN FD support up to 5 MBit/s, and fail-safe features for ideal passive behavior.

Infineon Technologies TLE9250XSJ Product Info

16 April 2026 0

Parameters

Additional Features

RM, Vio

Base Product

TLE925x

Bus Wake-Up Capability

No

Family

CAN FD 5MBit/s

Features

RM, Receive Only Mode, Vio

Language

IBIS

Product Category

Transceivers

Qualification

Automotive

Quiescent Current

N/A, no standby mode

Standards

ISO11898-2

Supply Voltage

3.3 V, 5 V

Transmission Rate max

5 MBit/s

Type

CAN, CAN FD

Wake-up Inputs

None

Features

  • Fully compliant to ISO 11898-2 (2016)
  • Guaranteed loop delay symmetry to support CAN FD data frames up to 5 MBit/s
  • Very low electromagnetic emission (EME) allows the use without additional common mode choke
  • V IO input for voltage adaption to the microcontroller interface (3.3V or 5V)
  • Receive-only mode
  • Also available in tiny, leadless PG-TSON-8 package ready for automated optical inspection (AOI)
  • Excellent ESD robustness
  • Extended supply range on the V cc
  • TxD time-out function
  • Wide common mode range for electromagnetic immunity (EMI)
  • Very low CAN bus leakage current in power-down state
