IRFSL3306
  • IRFSL3306

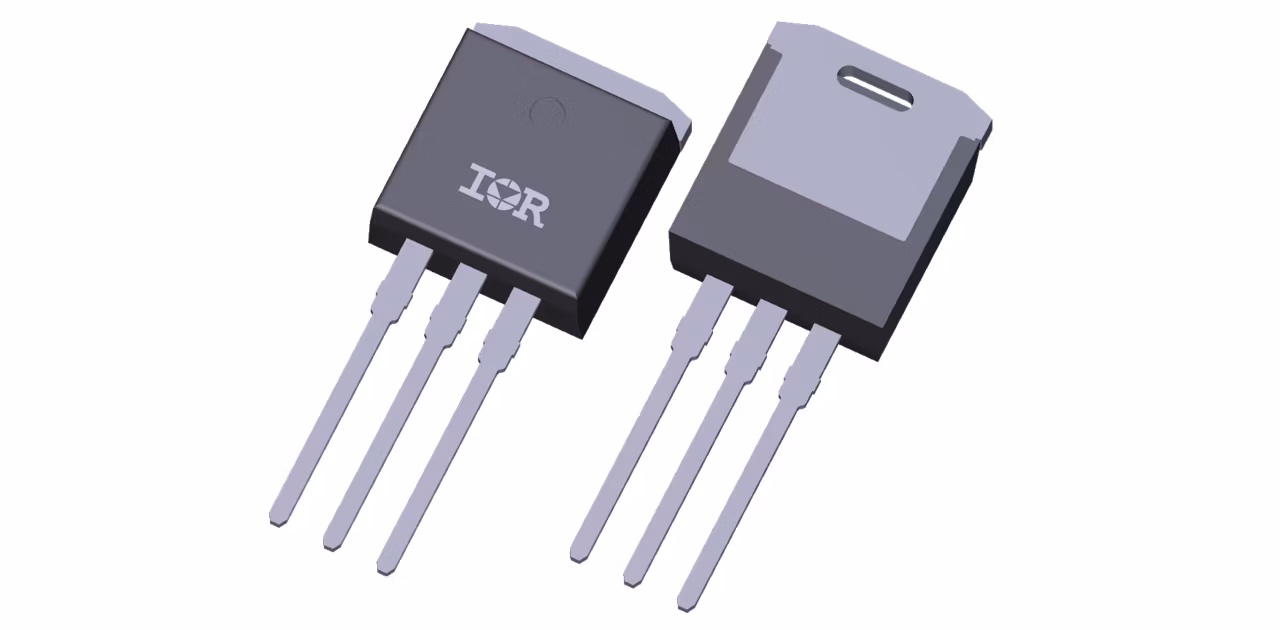

IRFSL3306

The StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.

Infineon Technologies IRFSL3306 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.75

ID (@25°C) max

160 A

Mounting

THT

Operating Temperature range

-55 °C to 175 °C

Package

I2PAK (TO-262)

Polarity

N

Ptot max

230 W

Qgd

26 nC

QG (typ @10V)

85 nC

RDS (on) (@10V) max

4.2 mΩ

RthJC max

0.65 K/W

Tj max

175 °C

VDS max

60 V

VGS(th) range

2 V to 4 V

VGS(th)

3 V

VGS max

20 V

Features

  • Optimized for broadest availability
  • Product qualification according to JEDEC
  • Industry standard through-hole power
  • High-current rating

Description

  • Wide distribution availability
  • Industry standard qualification level
  • Drop-in replacement with standard pinout
  • High current carrying capability
