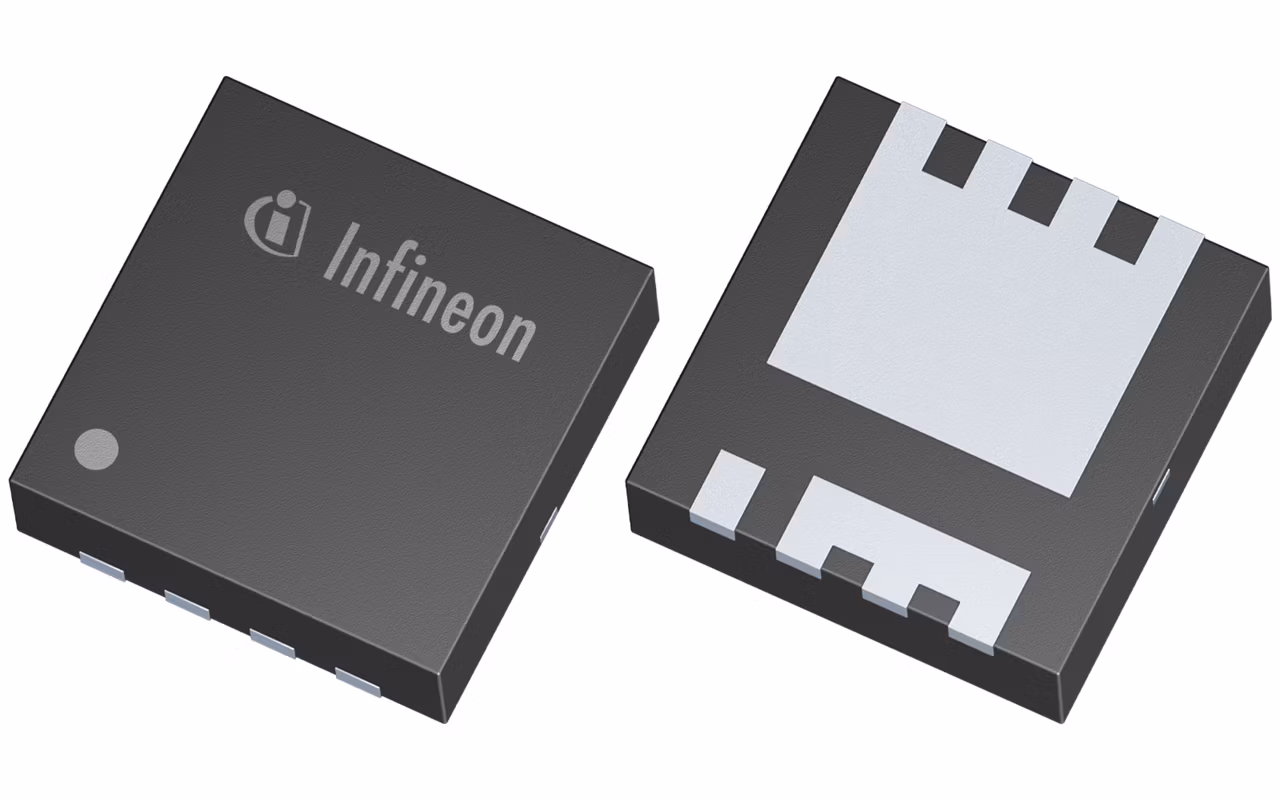

BSZ0501NSI
  • BSZ0501NSI

BSZ0501NSI

Active and preferred

With the OptiMOS™ 5 25V and 30V product family, Infineon offers benchmark solutions by enabling highest power density and energy efficiency, both in standby and full operation.

Infineon Technologies BSZ0501NSI Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.4

Ciss

1500 pF

Coss

540 pF

ID (@25°C) max

123 A

IDpuls max

492 A

Mounting

SMD

Operating Temperature range

-55 °C to 150 °C

Package

PQFN 3.3 x 3.3

Pin Count

8 Pins

Polarity

N

QG (typ @4.5V)

11.4 nC

QG (typ @10V)

24 nC

RDS (on) (@10V) max

2 mΩ

RDS (on) (@4.5V) max

2.5 mΩ

RDS (on) (@4.5V LL) max

2.5 mΩ

RthJA max

60 K/W

RthJC max

2.5 K/W

Rth

2.5 K/W

Special Features

Logic Level, Monolithically Integrated Schottky-like Diode

VDS max

30 V

VGS(th) range

1.2 V to 2 V

VGS(th)

1.8 V

Apps

Medium voltage IBC (48 V)

Features

  • Best-in-class on-state resistance
  • Benchmark switching performance
  • RoHS compliant and halogen free
  • Optimized EMI behavior

Description

  • Highest efficiency
  • Highest power density with PQFN 3.3x3.3
  • Reduction of overall system costs
  • Operation at high-switching frequency
