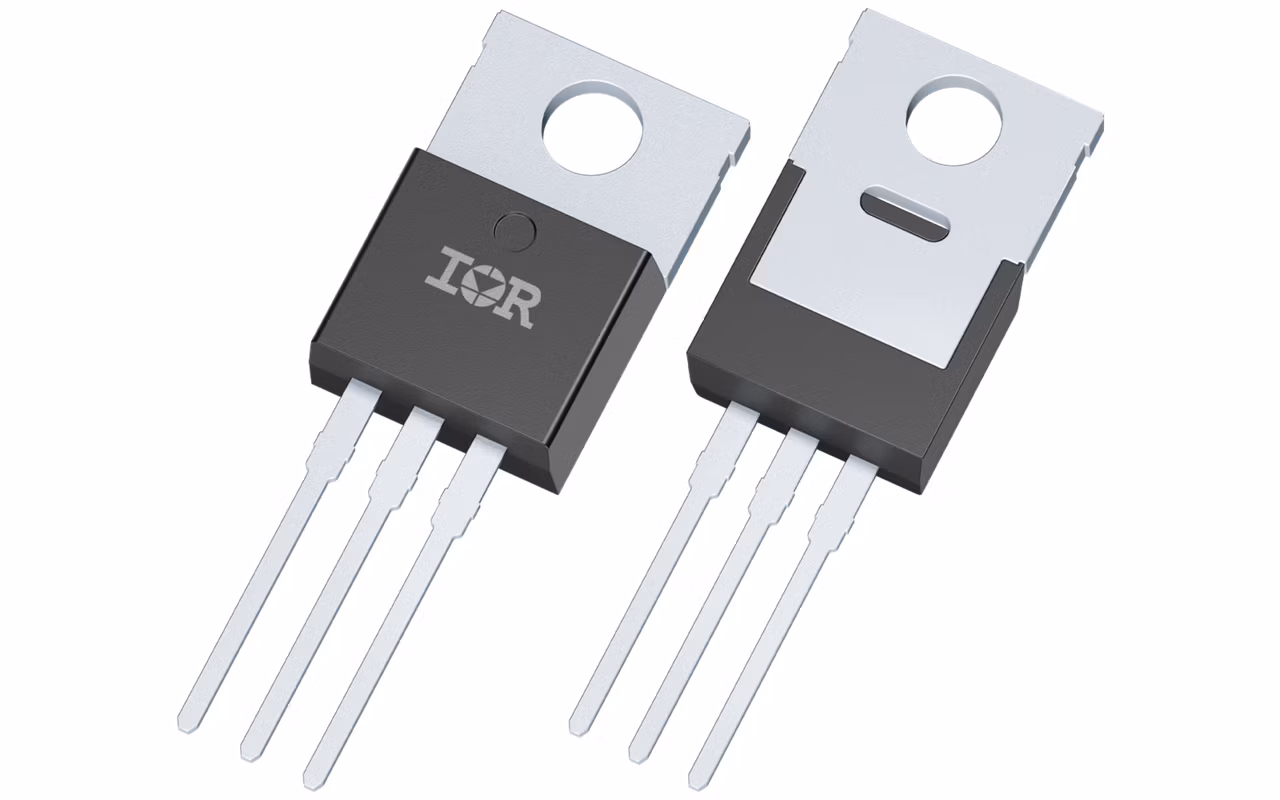

IRFB3004
  • IRFB3004

IRFB3004

The IR MOSFET™ family of power MOSFETs utilizes proven silicon processes offering designers a wide portfolio of devices to support various applications such as DC motors, inverters, SMPS, lighting, load switches as well as battery powered applications. The devices are available in a variety of surface mount and through-hole packages with industry standard footprints for ease of design. The optimized gate drive options enables designers the flexibility of selecting super, logic or normal level drives.

Infineon Technologies IRFB3004 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

1.69

ID (@25°C) max

340 A

Mounting

THT

Operating Temperature range

-55 °C to 175 °C

Package

TO-220

Polarity

N

Ptot max

380 W

Qgd

68 nC

QG (typ @10V)

160 nC

RDS (on) (@10V) max

1.75 mΩ

RthJC max

0.4 K/W

Tj max

175 °C

VDS max

40 V

VGS(th) range

2 V to 4 V

VGS(th)

3 V

VGS max

20 V

Apps

DIN rail power supply solutions

Features

  • Optimized for broadest availability from distribution partners
  • Product qualification according to JEDEC standard
  • Industry standard through-hole power package
  • High-current carrying capability package

Description

  • Multi-vendor compatibility
  • Industry standard qualification level
  • Standard pinout allows for drop in replacement
  • Increased current carrying capability
