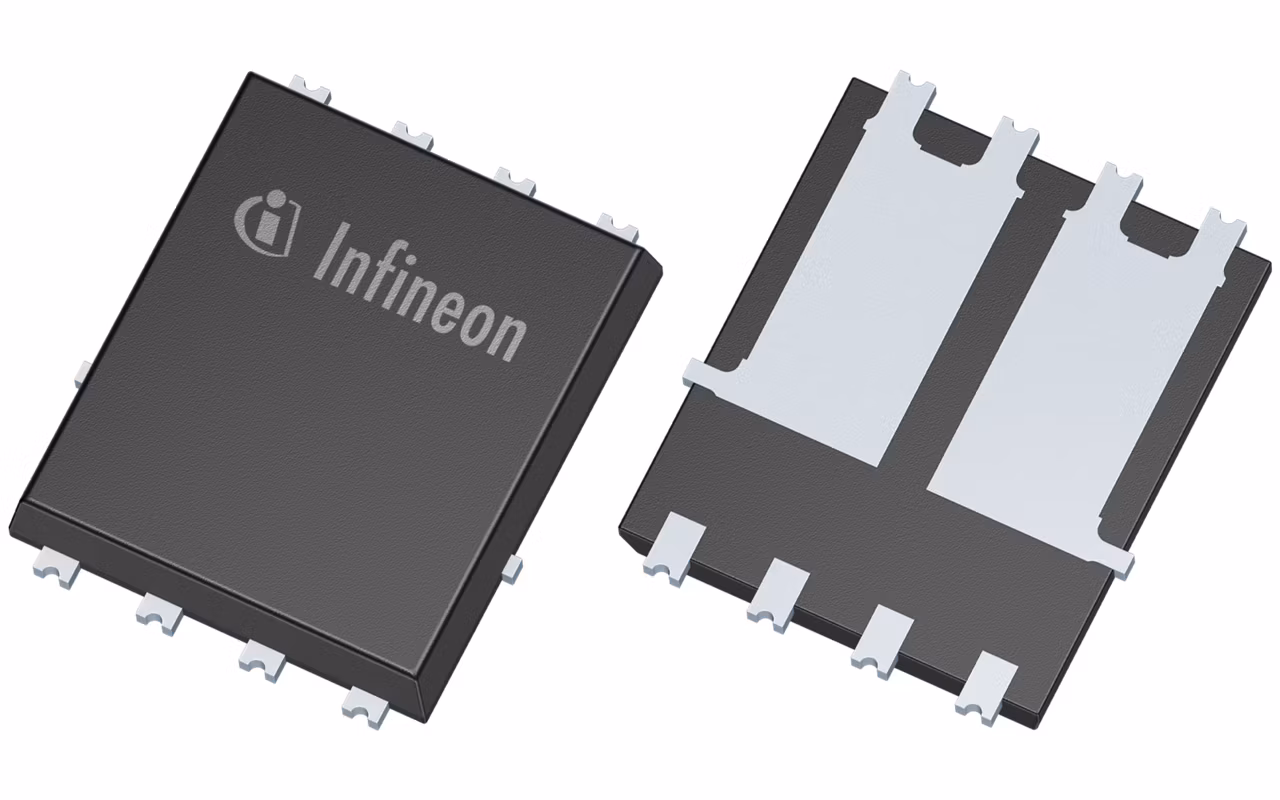

IPG20N10S4L-35A

Active and preferred

Infineon Technologies IPG20N10S4L-35A Product Info

16 April 2026 0

Budgetary Price €/1k	0.45
Country of Assembly (Last BE site, current, subject to change)	Malaysia
Country of Diffusion (Last FE site, current, subject to change)	Germany
ID (@25°C) max	20 A
IDpuls max	80 A
Launch year	2013
Operating Temperature range	-55 °C to 175 °C
Package	dual SS08 (PG-TDSON-8)
Planned to be available until at least	2034
Polarity	N+N
Ptot max	43 W
QG (typ @10V) max	17.4 nC
QG (typ @10V)	13.4 nC
Qualification	Automotive
RDS (on) (@10V) max	35 mΩ
RthJC max	3.5 K/W
Technology	OptiMOS™T2
VDS max	100 V
VGS(th) range	1.1 V to 2.1 V
VGS(th)	1.6 V

Automotive LED lighting systems
